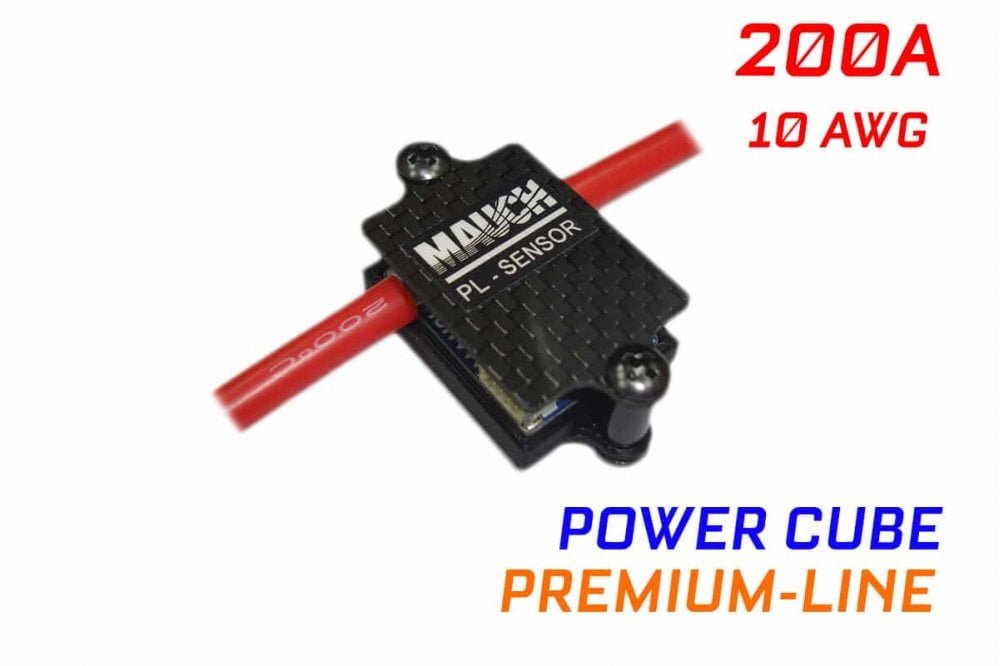

003 - PL-200 Sensor Board with CFK enclosure - 10AWG
Code: Mauch-003
200A - Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS758-200U. This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.
200A - Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS758-200U. Voltage range is up to 14S (60V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details. This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2. Connected to the sensor are 2x10cm AWG10 wire (red) as a standard. REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400) Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 22g (with 2x 10cm 10AWG) With CFK enclosure = 43.5 x 23.0 x 15mm / 27g (with 2x 10cm 10AWG) Delivery without sensor cable (comes with the BEC's), with CFK enclosure REM: If you want to use your own BEC, then please order a sensor cable (040) and ensure that the supplied voltage is within 4.95-5.05V.
