054 - Power Cube 4 V3 Code: Mauch-054-V3

Code: Mauch-054-V3

Mauch 054 - Power Cube 4 V3

The output voltage differs. Please select the version required:

1. Standard Option- 4 outputs as follows:

• 3 outputs x 5.3V / 10A

• 1 output x 12.0V / 10A

2. Custom Option - 4 outputs as follows:

•  4 outputs x 5.3V / 10A

3. Custom Option -  4 outputs as follows:

• 2 outputs x 5.3V / 10A

• 1 output x 6V / 10A

• 1 output x 12V / 10A

4. Custom Option -  4 outputs as follows:

• 2 outputs x 5.3V / 10A

• 1 output x 8.4V / 10A

• 1 output x 12V / 10A

5. Custom Option -  4 outputs as follows:

• 2 outputs x 5.3V / 10A

• 2 output x 12V / 10A

6. Custom Option -  4 outputs as follows:

 1 outputs x 5.3V / 10A

• 3 output x 12V / 10A

• Input voltage 4-14S, **max. 60V**

• Power-Cube 4 "V3" with 4 outputs: 2x 5.3V / 10A + 2x Varied Voltage / 10A (select the required product option from the dropdown menu)

Note: Delivery without 059: Power-Switch . Please order it separately if required.

Scope of delivery:

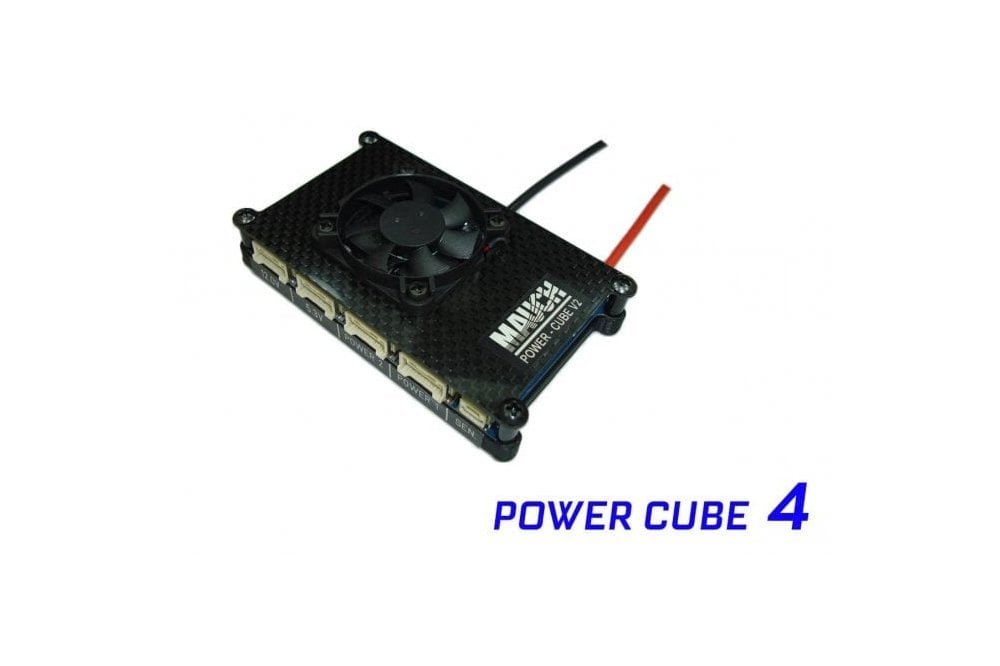

• 1x Power-Cube 4 with CFK enclosure and fan.

• 1x (040) PL sensor cable / L = 150mm

• 1x (060) Power-Cube / Pixhawk 2.1 cable / 2x Clik-Mate-6p / L = 200mm

• 1x (061) Power-Cube / Pixhawk 2.1 Backup / 2x Clik-Mate-6p + 1x JR / L = 200mm

• 1x (062) Power-Cube / 5.3V output cable / 1x C-M-6p + 3x JR / L = 200mm

• 1x (063) Power-Cube / 12.0V output cable / 1x C-M-6p + 3x JR / L = 200mm
