071 – HS Current Sensor 50A LV 2-6S
Code: Mauch-071
50A – Current measurement sensor board 2-6s max 28v
Includes DF13 cable, to use with Pixhawk 2 add the Clik Mate 2.0 cable available here

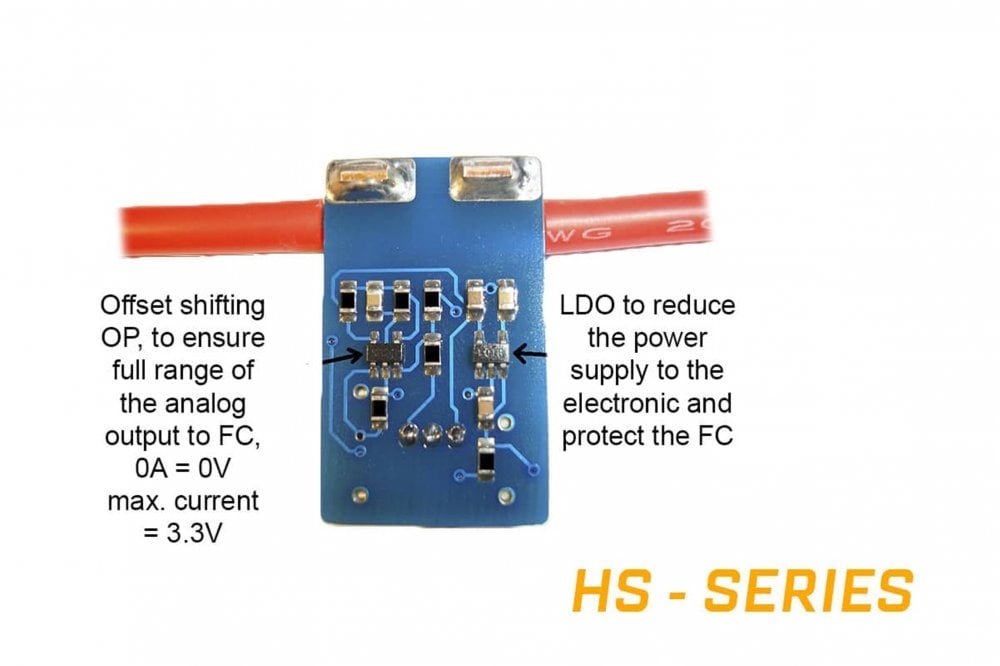

50A – Current measurement sensor board, based on Allegro Hall Sensor ACS-50U.
The voltage reading of the LiPo is optimised for up to 6S LiPo packs.
This Sensor board needs a power supply. So please select the matching BEC according your preference from the BEC section.
The BEC will also power the flight controller as well as the attached equipment like GPS, telemetry… etc.
Connected to the sensor are 2x10cm AWG12 wire (red) as a standard.
The board comes with
10cm connection cable (DF-13-6pDF-13-6p) to the FC for Pixhawk 1 or APM.
For Pixhawk 2 add the Clik Mate cable available here
