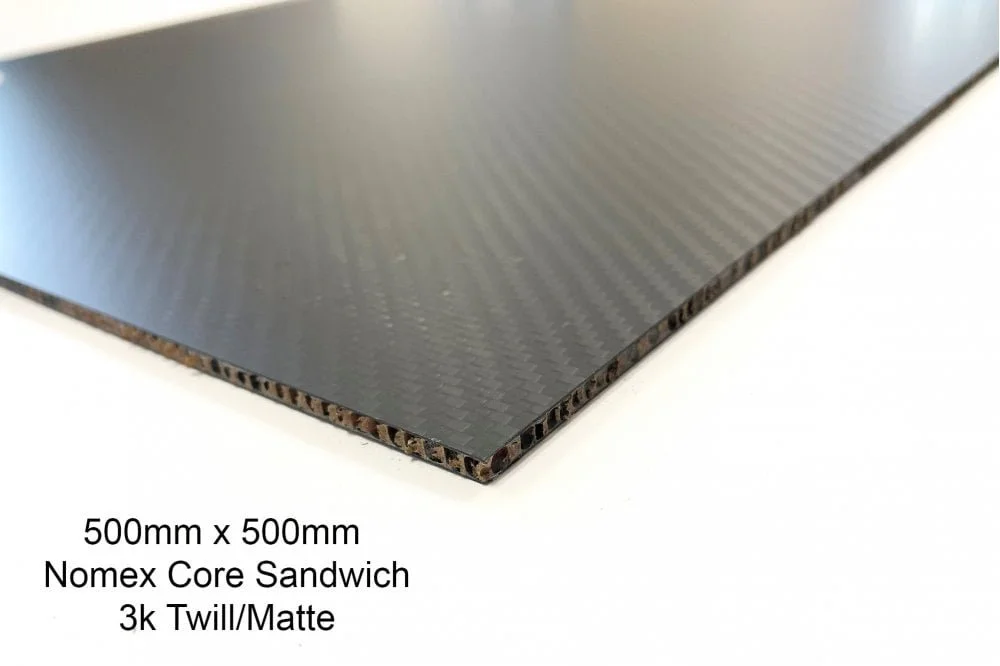

3DXR Carbon Fibre Nomex Core Sandwich- Sheet 500mm x 500mm Matte finish
Code: CFS-Nomex-Core-500-500-Matte
Carbon Fibre Nomex Core Sandwich- Sheet 500mm x 500mm Matte finish
Finish is Matte 3K Twille
These sheets have Nomex Honeycomb core
Size is 500mm x 500mm
Choose the required thickness
Note: Overall sheet thickness includes the thickness of Nomex core and the outer carbon fibre, please see below for details:
Core Nomex thickness (mm) Overall Sheet thickness (mm)
(includes core + outer carbon fibre)
3 3.7
4 4.7
This is the highest quality and most uniformed thickness Carbon Fibre Sheet we have used.
Sandwich panel is a special kind of structured composite in which one thin but stiff skin material is bonded to a lightweight but thick core. The core material is low strength material, but its higher thickness provides the sandwich composite with high bending stiffness with overall low density.
Nomex Honeycomb core is made from Meta-Aramid papers impregnated with thermosetting Phenolic resin
These honeycomb cores are one of the most preferred core materials for building super strong and light composite panels.
Key Features of Nomex Honeycomb Cores
High Strength to Weight Ratio
Easy and flexible to process
Corrosion Resistant
Flame Retarded
Good Thermal Insulation
