3DXR - FDG30 Mako Shark - VTOL
Code: FDG30-VTOL
FDG30 Mako Shark VTOL
The FDG30 is a long endurance (6hrs+) VTOL for Payload upto 1.5kg
Reaching such flight times is a combination of lightweight high strength airframe, customized high efficiency motor combination, large capacity battery.
Specification

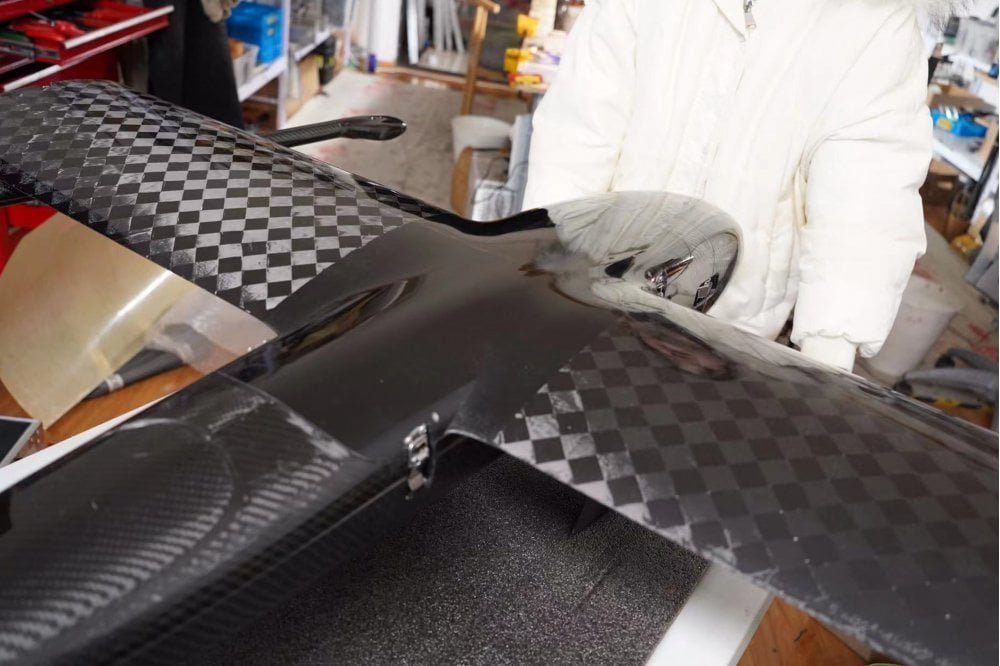

Body material: carbon fiber, composite material, etc.
Body length: 1800mm
Wingspan: 3000m
Landing gear height: 19cm
Landing gear installation position: below the rotor rod
Payload compartment size: 140mm*140mm*120mm
Mission compartment position: Front of the fuselage
Frame Structure weight: about 6kg
Maximum take-off weight: less than 16kg
Maximum payload: 2kg (standard load: 1-1.5kg)
Endurance: with 1KG payload get 6 hours (test flight) - 10 hours (estimated limit) @ 18 m/s (depending on the battery and model version).
Maximum control distance: manual control by remote control/3km, ground station/standard 30km (up to 100km with numerical control)
Flight speed: economic cruise speed 15-22 m/s (range is almost unchanged)
Maximum flight speed: 30 m/s
Stall speed: 12m/s
Minimum circling radius: 150m
Maximum horizontal lift limit: 4000m above sea level
Wind resistance in fixed-wing mode: no less than 7 wind (17.1m/s)
Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (7.9m/s)
Operating environment: -20℃~45℃; can fly in light rain
VTOL Battery: 1x 5000mah 8S
Push Battery 1x 60000mah 8S
VTOL operation time: not less than 6.5min
Take-off and landing method: vertical take-off and landing
Vertical power propeller size: ~ 22inches
Fixed wing tail thruster propeller: ~ 15 inches
Available Versions
Prices are for guidance, please contact us for a quote.
The Airframe is not available, the simplest option is the PNP KIT
FDG30 VTOL PNP KIT - the FDG30 for self assembly with, Motors, Props, ESCs, Servos, Cube Orange, Here 3, Airspeed, 1x Lift and Push Battery and Flight Case. Choose control link separately. (approx. £24K + Shipping)
FDG30 VTOL RTF with basic link - Assembled and flight tested with Herelink and pilot nose cam, handover service. (approx. £29K)
FDG30 VTOL ISR Edition - With EO (80x) and IR payload, AI featuring object identification, counting, Designator, ANPR. Software Defined IP Mesh radio ranges 30, 500 and 100km available. (approx. 60-200K)
FDG30 VTOL SIGINT Edition - contact us for details
