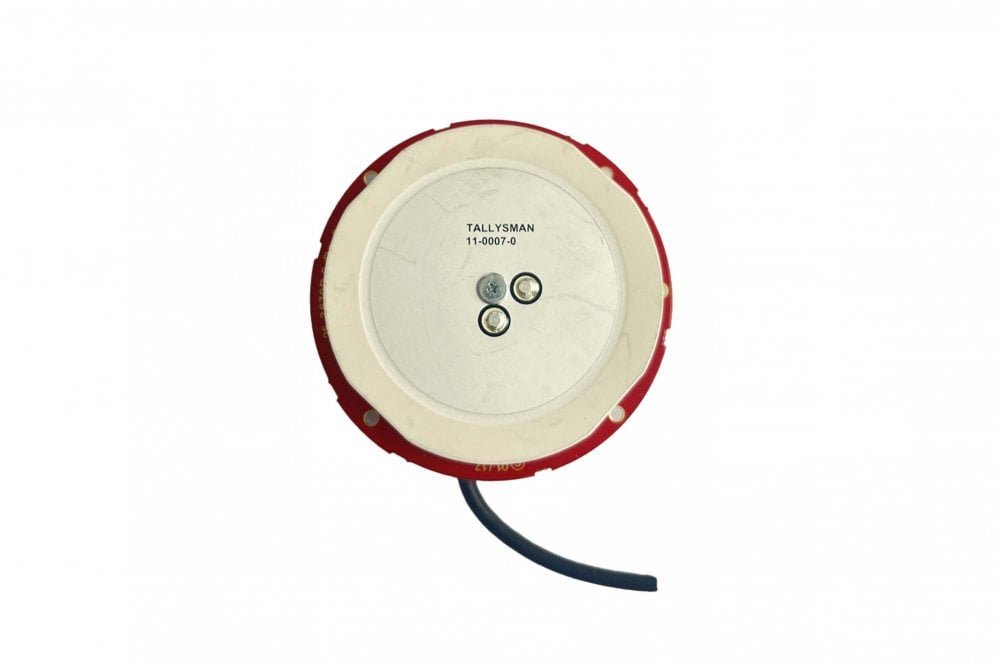

3DXR TW3967 Embedded Triple Band GNSS Antenna with L-Band
Code: BLD-D-04-03-TW3967-Embedded-Triple-Band
The TW3967 employs Calian’s unique Accutenna® technology, covering GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b, BeiDou B1/B2, SBAS (WAAS/EGNOS/GAGAN/MSAS), and L-band correction services.
Ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters, the TW3967 provides superior multi-path signal rejection, a linear phase response, excellent axial ratios, and tight Phase Centre Variation (PCV).
The TW3967 features a precision tuned, twin circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output.
Providing enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the TW3967 also includes an LNA pre-filter.
Calian offers custom tuning services to optimize the performance of the TW3967 for any OEM installation environment.
The TW3967 is housed in a through-hole mount, weather-proof enclosure for permanent installations. An L-Bracket or Pipe Mount are available for non-rooftop installation. A 100mm ground plane is included and recommended for all installations.
Features:
Ideal for triple band RTK surveying systems
Great multipath rejection
Increased system accuracy
Great signal to noise ratio
REACH and RoHS compliant
Specification:
Very low Noise Preamp: < 2.5dB
Axial ratio: < 2dB typ.
Tight Phase Center Variation (PCV)
LNA Gain 28 dB typ.
Low current: 24 mA typ.
ESD circuit protection: 15 KV
Invariant performance from: +2.5 to 16VDC
Package contains:
1x TW3967 Embedded Triple Band GNSS Antenna with L-Band
