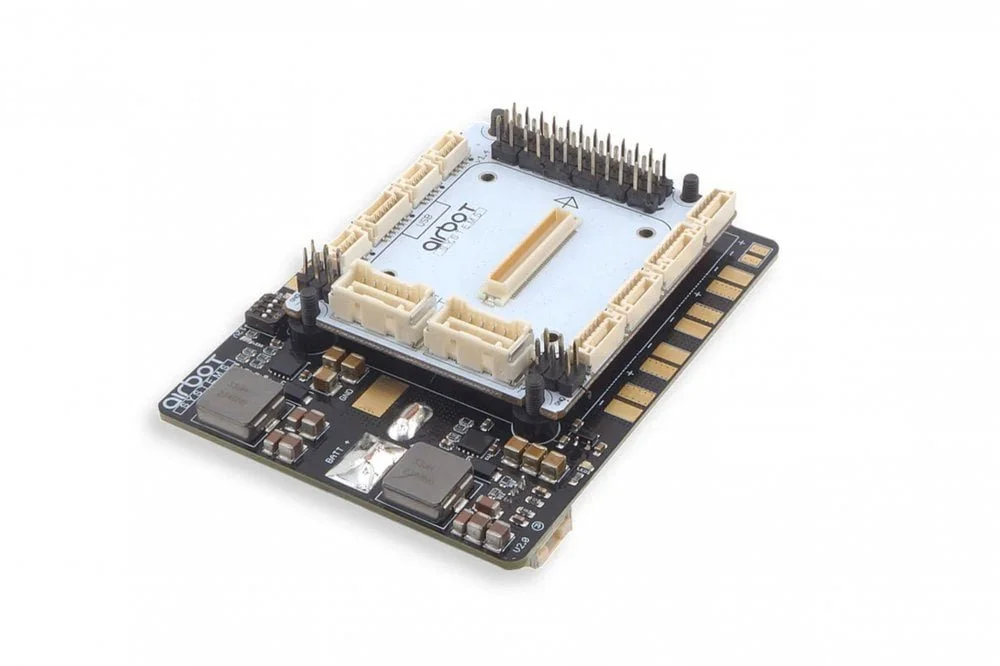

AIRBOT SYSTEMS - Mini Carrier Board + PDB Pro V2 100A Combo
The Airbot MINI Carrier Board + PDB PRO v2 100A Combo is the most efficient set to integrate a Cube into a vehicle. This set grants a high level of connectivity in a very compact size. Equipped with a PDB integrating two voltage converters (5V3 & 5V3/12V), current and voltage sensors, this set provides all the environment necessary for a complete setup, and in an ultra compact format.
**100 Amp version**
The Pro version integrates a power distribution board which includes two voltage converters, a current sensorand a voltage probe. This very compact set includes all the elements necessary to accommodate a Cube, allows easy assembly and significant space saving.
The Airbot Mini carrier board PRO has been specially designed to facilitate the installation of a Cube Autopiloton any drone. It offers the same connectivity as the official Cubepilot carrier board, and guarantees perfect compatibility with the Pixhawk Cube ecosystem.
*The Cube is not included**
Mini carrier board : (Version 1.4)
Dimensions : 50.5*57.5mm (1.98*2.26 inch)
Height with cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)
Weight: 19gr (0.041 lb) (incl. connectors and PSM)
Mini Distribution Board Pro 100A:
Dimensions : 65.5*85mm (2.58*3.35 inch)
Weight : 44gr (0.097lb)
Max current : 100A / 200A
Power supply 1 :
Output voltage : 5.3V
Max output current : 3A (4A peak tolerant)
Max voltage input : 50.4V (12S)
Power supply 2 :
Output voltage : 5.3V or 12V
Max output current : 3A (4A peak tolerant)
Max voltage input : 50.4V (12S)
TOTAL weight: 68g / 0.150lbs
Design, quality control and packed in France
Manufactured in China
For more information, please see https://airbot-systems.gitbook.io/airbot-public-wiki/combo-pro/v-2.0
Package contains:
1 x Airbot Mini Carrier Board
1 x Airbot Mini PDB Pro v2,100A
4 x M3x8mm nylon spacer
4 x M3x4mm nylon spacer
2 x Cube power cable
1 x Accessories power cable
