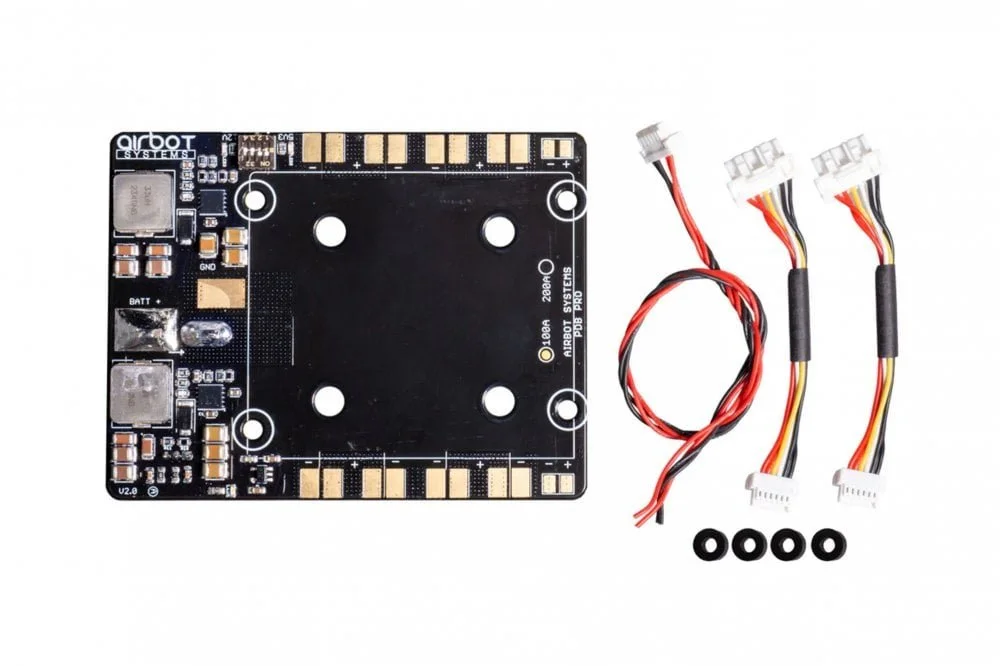

The MINI PDB PRO v2 100A is the most efficient set to integrate a Cube dans into a vehicle. This set grants a high level of connectivity in a very compact size. Equipped with a PDB integrating two voltage converters (5V3 & 5V3/12V), current and voltage sensors, this set provides all the environment necessary for a complete setup, and in an ultra compact format.
**100 Amp version**
The Pro version integrates a power distribution board which includes two voltage converters, a current sensorand a voltage probe. This very compact set includes all the elements necessary to accommodate a Cube, allows easy assembly and significant space saving.
*Airbot Mini Carrier Board and Cube not included**
Mini Distribution Board Pro 100A:
Dimensions : 65.5*85mm (2.58*3.35 inch)
Weight : 44gr (0.097lb)
Max current : 100A / 200A
Power supply 1 :
Output voltage : 5.3V
Max output current : 3A (4A peak tolerant)
Max voltage input : 50.4V (12S)
Power supply 2 :
Output voltage : 5.3V or 12V
Max output current : 3A (4A peak tolerant)
Max voltage input : 50.4V (12S)
TOTAL weight: 68g / 0.150lbs
Design, quality control and packed in France
Manufactured in China
For more information, please see https://airbot-systems.gitbook.io/airbot-public-wiki/combo-pro/v-2.0
Package contains:
1 x Airbot Mini PDB Pro V2 100A
