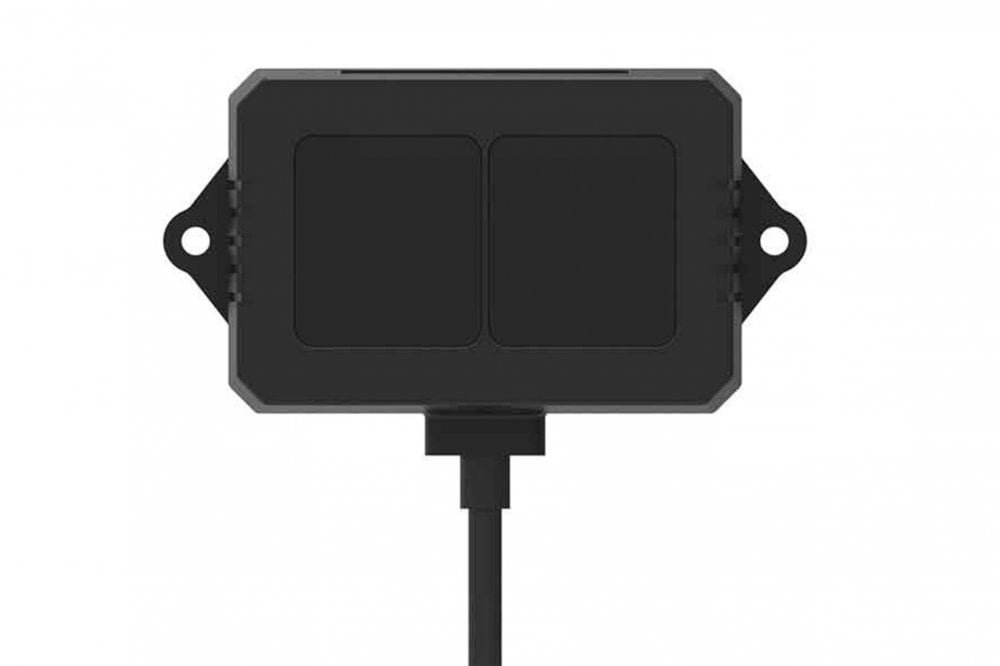

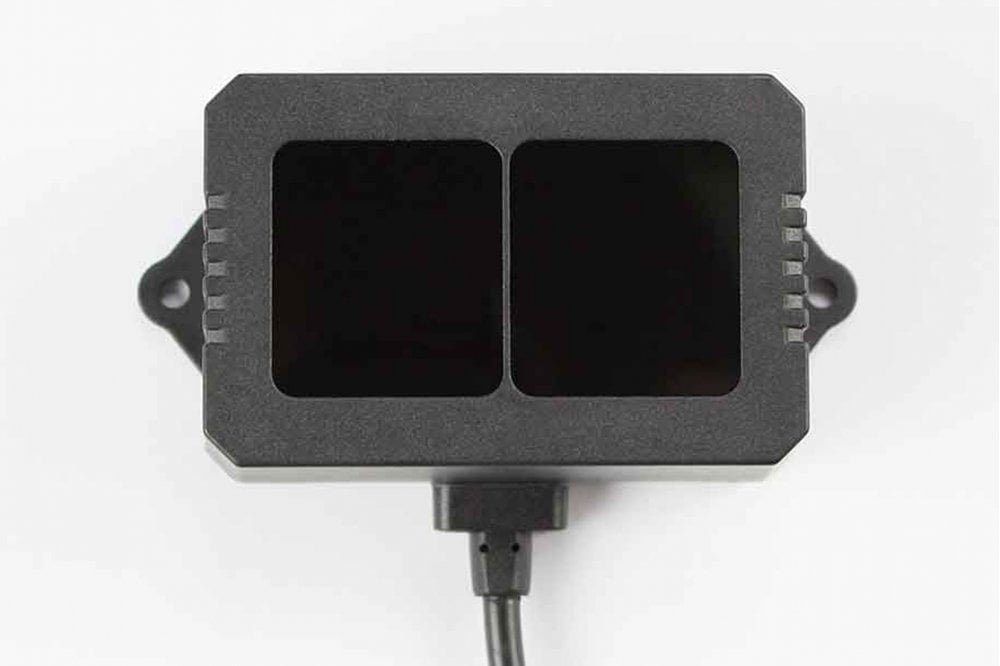

Benewake -TF02 PRO LiDAR Rangefinder (40m)
Code: BW-TF02-PRO
TF02-Pro as a cost-effective mid-range distance sensor, ranging performance up to 40m, based on TOF, can be widely used in UAV height control, intelligent transportation, intelligent parking, intelligent agriculture. TF02-pro, as the upgraded version, has been upgraded and optimized by the optical system and algorithm to achieve better realization in outdoor ambient, different reflectivity backgrounds and temperature.
IP65
Operating Range: 0.1-40m
Operation Temperature: -20°~60°
FOV: 3°
Frame Rate: 1-1000Hz
Weight: 50g
Communication Interface: UART, IIC, IO
Package Contains
1 x TF02 PRO LiDAR Rangefinder (40m) with UART OR IIC Interface
Benewake TF02 Pro (40m)
Please see 'Downloads' section for the product's Datasheet and Manual.
For software see Benewake website here.
Description
Benewake TF02-Pro LIDAR LED Rangefinder IP65 Features a single-point ranging LiDAR Can achieve stable, accuracy, sensitive and high-frequency range detection Offers a sensor range up to 40 meters Has an ambient light resistance up to 100 Klux The Benewake TF02-Pro LIDAR LED Rangefinder IP65 (40m) is a single-point ranging LiDAR based on TF02 upgrade. The performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection. The protection design of the TF 02 is based on the IP65 level, which prevents it from the dust, water, and corrosion. It is anti-interferential from the strong light outdoors. It can work under 100K lux light without the interference from the temperature, humidity, light, electronics and airflow. Scan frequency up to 100 Hz, real-time detection of distance with a 100 times/second refresh rate for more accurate data. TF02 has a complete system, containing a protective shell made of materials with a high transmittance of infrared, which doesn't affect the optical performance. It has been widely used in height fixing and terrain following of drones, especially in agriculture.
Specifications
Product performance Operating Range: 0.05 ~40 m @90% reflectivity 0.05 ~13.5 m @10% reflectivity 0.05 ~40 m @90% reflectivity (100 Klux) 0.05 ~13.5 m @10% reflectivity (100 Klux)
Accuracy: ±5 cm (0.05 ~5 m), ±1% (5~40 m)
Distance Resolution: 1 cm
Frame rate: 100 Hz
Repeatability: 1σ: Other Parameters
Weight: 50 g (with cables)
Enclosure material: PC/ABS
Storage temperature: -30 ~80 °C
Cable length: 80 cm
