Code: CM-03-02-G100-KV10

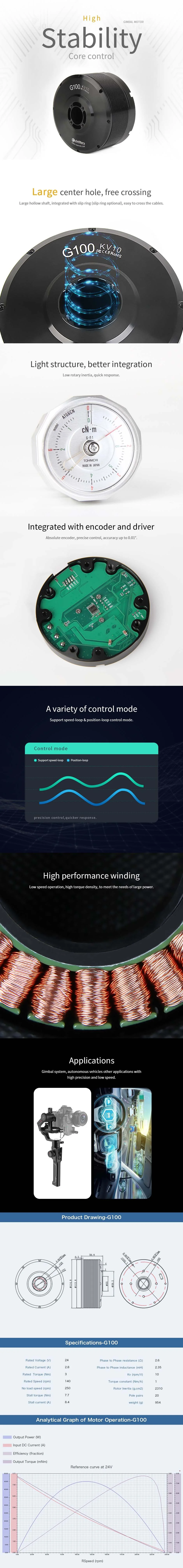

CubeMars G100 Gimbal Motor features a large central through-hole design that allows integration of an electrical slip ring, making it convenient for wiring. The G series gimbal motors have an overall low cogging torque, resulting in low energy consumption and enabling quick responses. With a high precision of 0.01°, these motors support various control modes, including speed and position control, providing precise and convenient control options.
The G100 gimbal motor adopts a high slot-fill factor winding, allowing for low-speed operation with high torque density, meeting the requirements of applications with high power demands. Additionally, it boasts high waterproof and dustproof performance, making it suitable for gimbal systems and autonomous driving systems, gaining popularity among users.
Features:
Large Center Hole
Low Cogging & Consumption
Integrate with Electrical Slip Rings
For Gimbal and Automatic Driving Systems
Waterproof and Dustproof
Specifications:
Motor Weight: 954g
Rated Voltage: 24V
Rated Current: 2.4A
Rated Torque: 3Nm
Rated Speed: 105rpm
Maximum No-Load Speed: 250rpm
Stall/Peak Torque: 7.7Nm
Package contains:
1x G100 KV10 Motor
