Code: AM-B-03-01-EC3-PR-X10

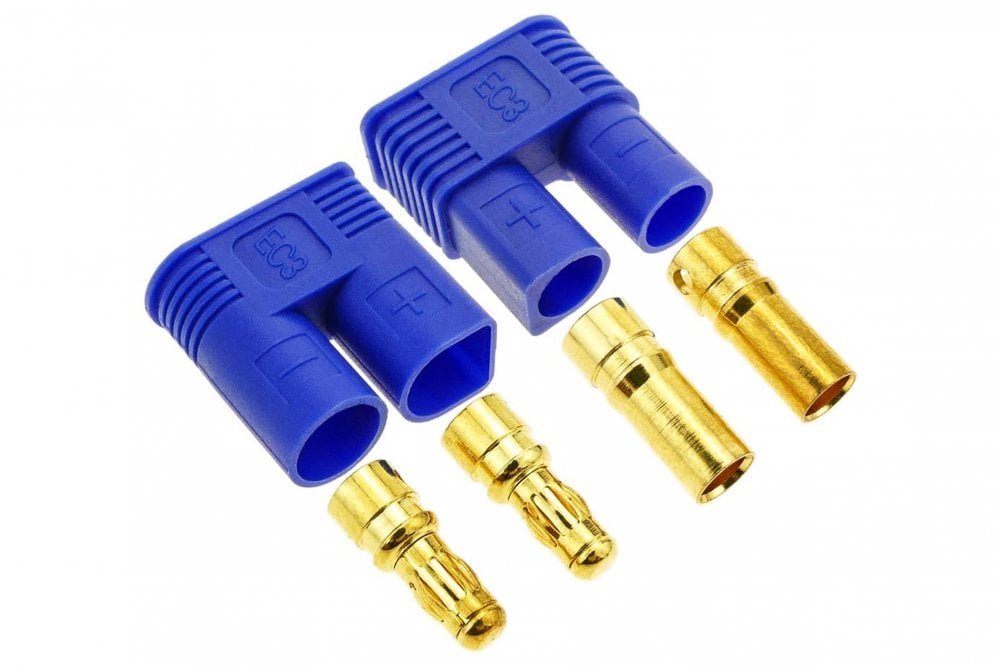

Amass EC3 Connector
Manufacturer: AMASS
Connector: plug
Type of connector: DC supply
Connector series: EC3
Kind of connector: male and female
Number of pins: 2
Mechanical mounting: for cable
Electrical mounting: soldering
Contact plating: gold flash
Colour: blue
Current rating: 25A
Flammability rating: UL94V-0
Operating temperature: -20...120°C
Rated voltage: 500V
Spatial orientation: straight
Contact material: brass
Mechanical durability: 1000 cycles
Body material: polyamide
Wire size: 12AWG
Includes:
10 X Amass EC3 Male
10 X Amass EC3 Female
