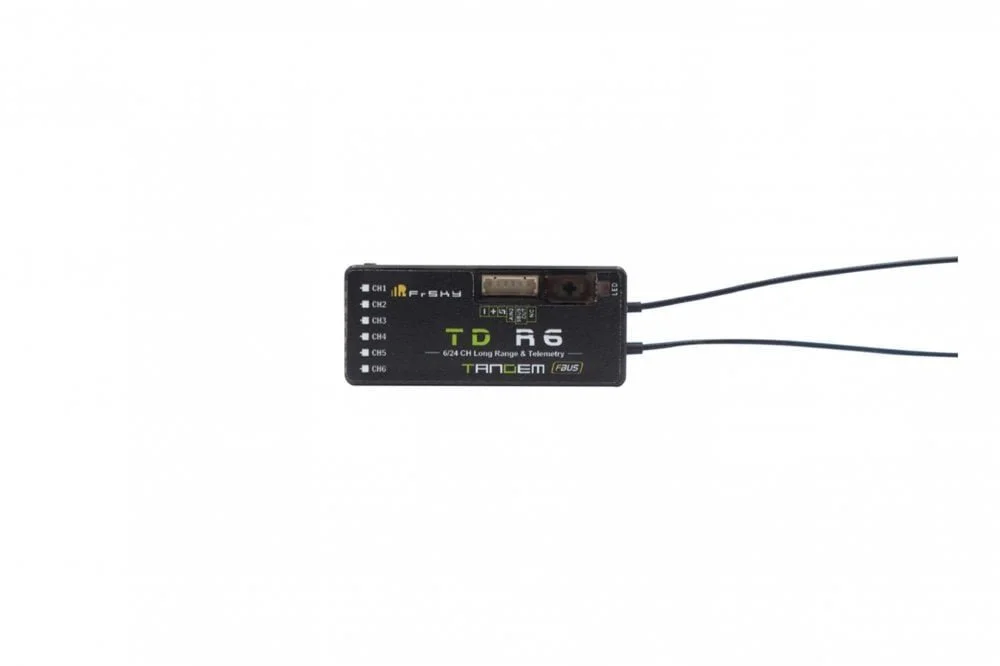

FrSky -TDR6-Transmitter
Code: FrSky-03-01-TDR6-Transmitter
The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 2.4Ghz and 900Mhz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance.
The Tandem series receivers adopt a dual-band antenna design (2.4GHz & 900MHz) that provides multi-directional wide coverage for the remote signal. The telemetry data (Power & Signal related) can be recorded using the built-in black box module within the Tandem receiver, useful for capturing data from any unusual status during the flight.
Features:
Simultaneous working 2.4G&900M dual-band TD mode
Dual-band antenna design for multi-directional coverage
Compact lightweight design
Black Box function
4ms race mode with telemetry
Long control range (up to 50KM – 100KM)
Over-The-Air (OTA) FW update
6 PWM channel ports
FBUS / S.Port
SBUS Out (Supports 16CH / 24CH mode)
Specification:
Frequency: 2.4GHz & 900MHz
Dimension: 47.5*20.4*10.9mm (L*W*H)
Weight: 11.5g
Operating Voltage: 3.5-10V(recommend 3.7-8.4V)
Operating Current: ≤110mA@5V
Compatibility: TANDEM series radio & RF module in TD mode.
2.4G/900M antenna connector: IPEX1
Voltage Measurement Range via AIN2 (External device): 0-30V
