Gens Ace - TA3000 Dual Smart Charger for 12S-14S Smart Lipo/LiHV
Code: GensAce-TA3000
This Charger is equipped with intelligent features that enable it to recognise the Tattu 12S/14S with AS150U smart batteries.
It automatically recognizes the parameters of the connected battery and can perform charging and discharging functions without manually setting it, and can detect the state of charge, state of health, and temperature of the batteries while adjusting the charge current accordingly. It has more functions such as over-temperature protection, overcurrent protection, overcharge protection, disconnection protection, and fast balancing.
In conclusion, it's made to extend the life span of the batteries.
Specifications:
Charging Power: AC 110V Input: Max 1200W / AC 220V Input: Max 3000W
Discharge Power: MAX 70W*2
Charging Current: AC 110V Input: Max 40A / AC 220V Input: Max 60A
Input Current: AC<15A
Type of Battery: LiPo / LiHv / Smart Battery
Cell Count: 12-14S
Channel Count: 2 Channel
Balance Tolerance: ±20mV
Display: 2.4 inch IPS Screen
Operating temperature: 0~65 ℃
Storage temperature: -20~60 ℃
Fast charge mode voltage: LiPo: 4.2V; LiHv: 4.35V
Input Protection: Over Current Protection
Output Protection: Over Voltage / Under Voltage / Short Circuit / Over Temperature / Reverse Polarity
Cooling System: Cooling Air
External Upgrade Port: USB Port
Dimensions: 276×154×216mm
Weight: 6kg

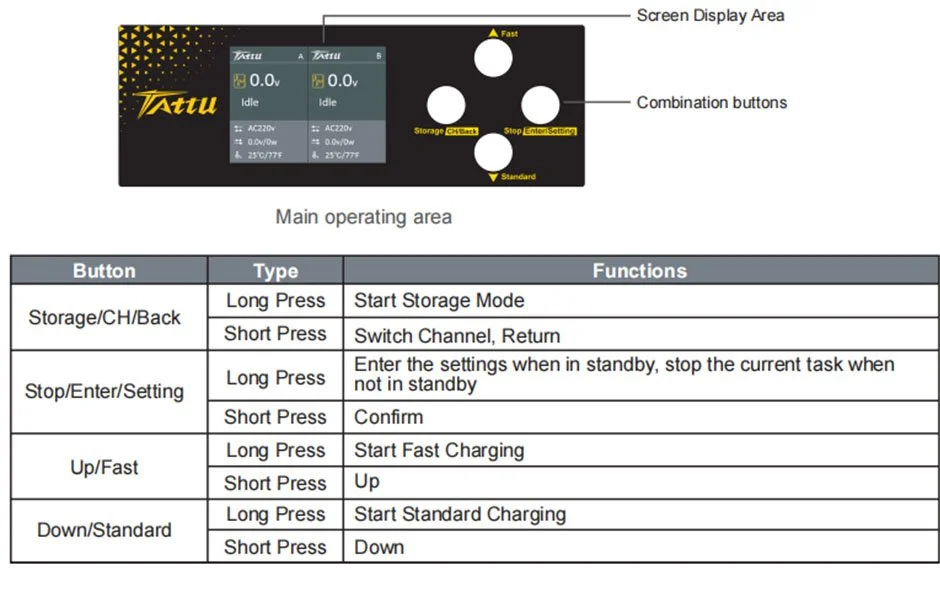

Operation:
There is a display screen and push buttons.
The screen display area is used to view charger parameters, charging information, etc.
The push buttons are used for equipment operation.
Please Note:
In the split-screen display state, long press the "Channel/Return/Start" button to start the charging operation, and long press the "Channel/Return/Start" button or the "Confirm/Set" button to stop the operation.
Always stop the charger before disconnecting the battery. Failure to do so may cause internal charger damage.
Always ensure that the battery is connected properly to the charger. Do not modify the charger or battery in any way and do not attempt to “force” the charger function. Failure to follow these instructions may cause fire and or property damage.
If you notice any unusual situation during charging (such as a swollen battery), be sure to stop the charging cycle or disconnect power from the charger.
