Code: HP-03-01-Captain-X-10.2-Monitor(*UN3481*)

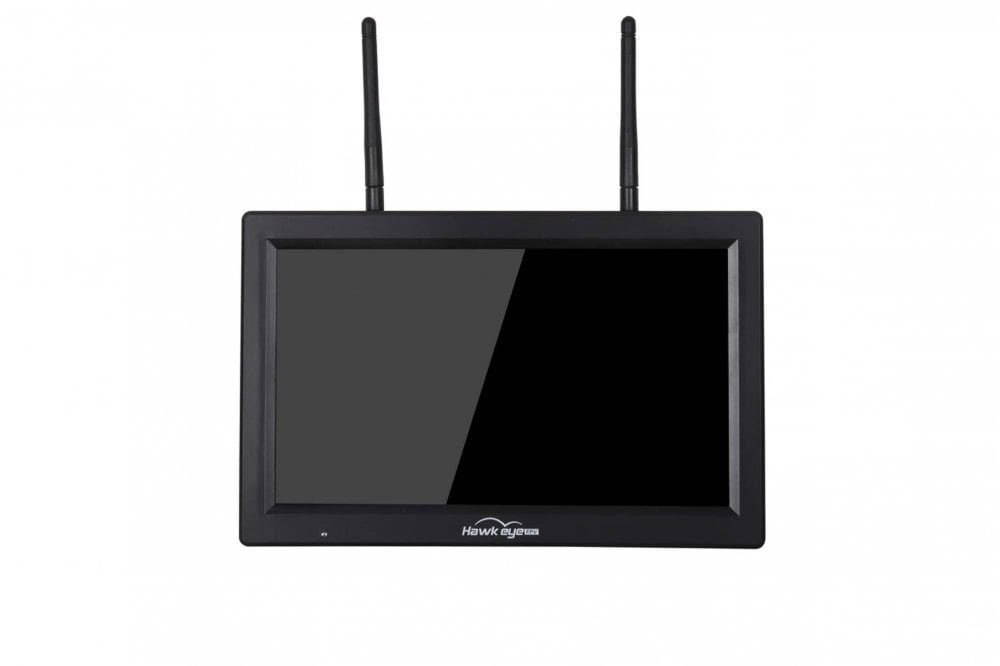

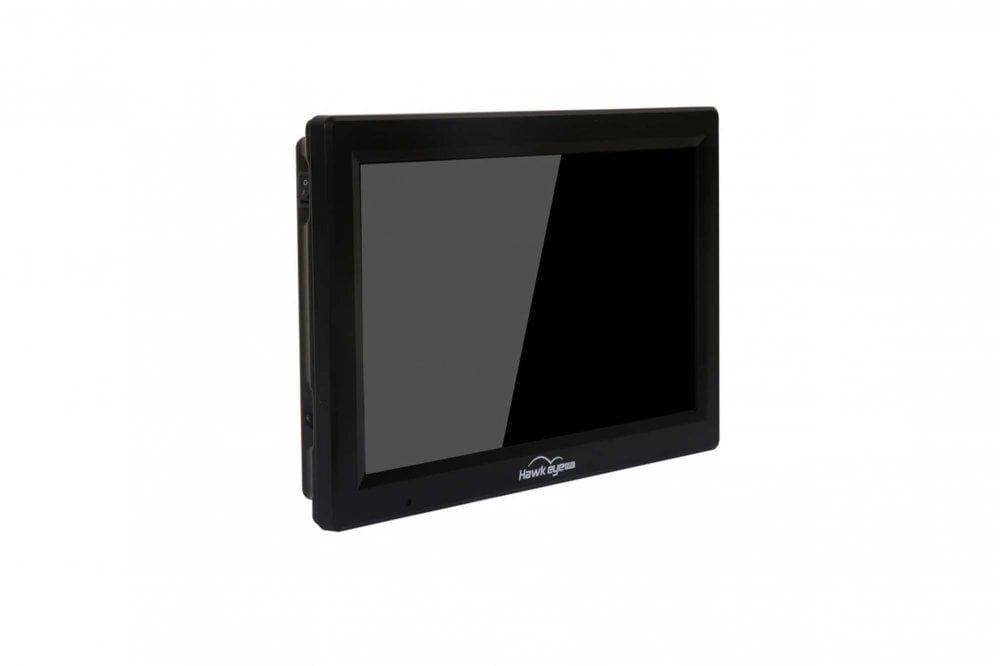

Hawkeye make a range of FPV monitors to suit different applications. From watch style mini monitors used by FPV racers to this model, the Hawkeye Captain X, which is their largest FPV screen and would suit commercial operators and FPV spectators. The Hawkeye Captain boasts the biggest screen size of all the FPV monitors we sell.
The Captain X is a 10inch Monitor, with built in 5.8GHz diversity receiver and DVR function. For those running Shark Byte digital FPV, you can use this monitor with the Walksnail VRX receiver using its HDMI input. Like all of Hawkeye’s FPV monitors, the Captain is easy to use. The monitor has a helpful auto-channel scan function and signal strength indicator. The power input for the display is 3-6S and it comes with a XT60 power lead. Other accessories include a stand and AV input lead.
Specification:
Display resolution 1024×640
Backlight LED
Brightness 1000 Lux
Aspect ratio 16: 9
Response time 10ms
Colour system PAL/NTSC
Working voltage DC: 3S-6S battery
Current 1.74A @3S；850MA @6S;
Input Signal Video: (PAL/NTSC)， HDMI
Output Signal Video
5V(input power >12V) 1A
DVR Resolution D1/VGA/QVGA TF card supported Max 64G
Packing size 300mm×200mm×60mm
Monitor size 265mm×170mm×31mm
Gross weight 1.13kg
5.8G Sensitivity -99dB
Antenna connector SMA
Channels: 60 (X Band supported)

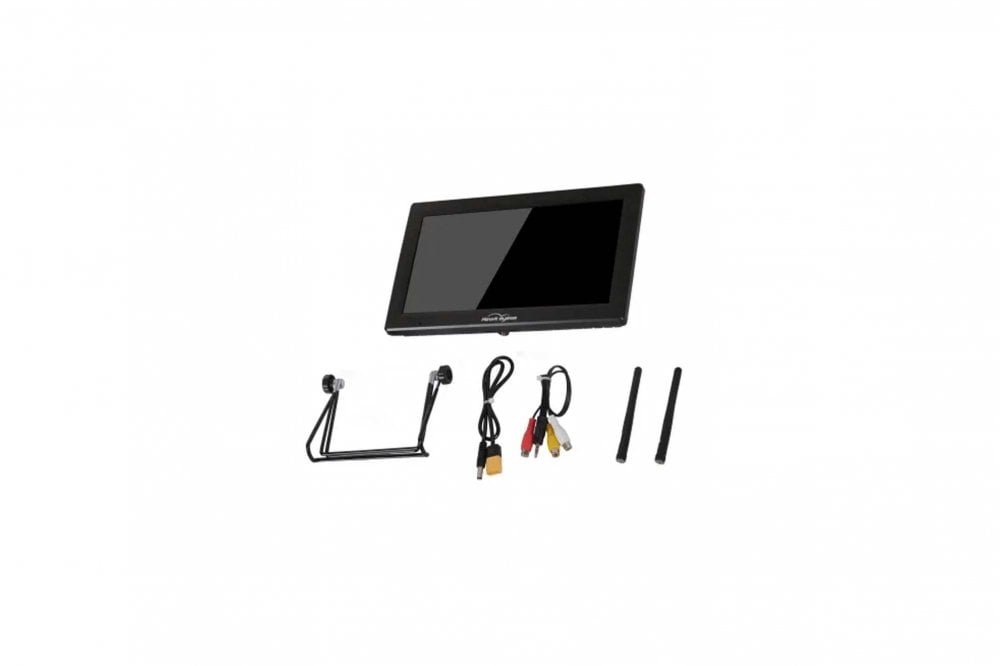

Package Contains:
1x Captain X 10.2 inch 5.8GHz High Sense FPV Monitor and cables
