HOLYBRO - H-RTK Unicore UM982 (Dual Antenna)
H-RTK Unicore UM982 (Dual Antenna)

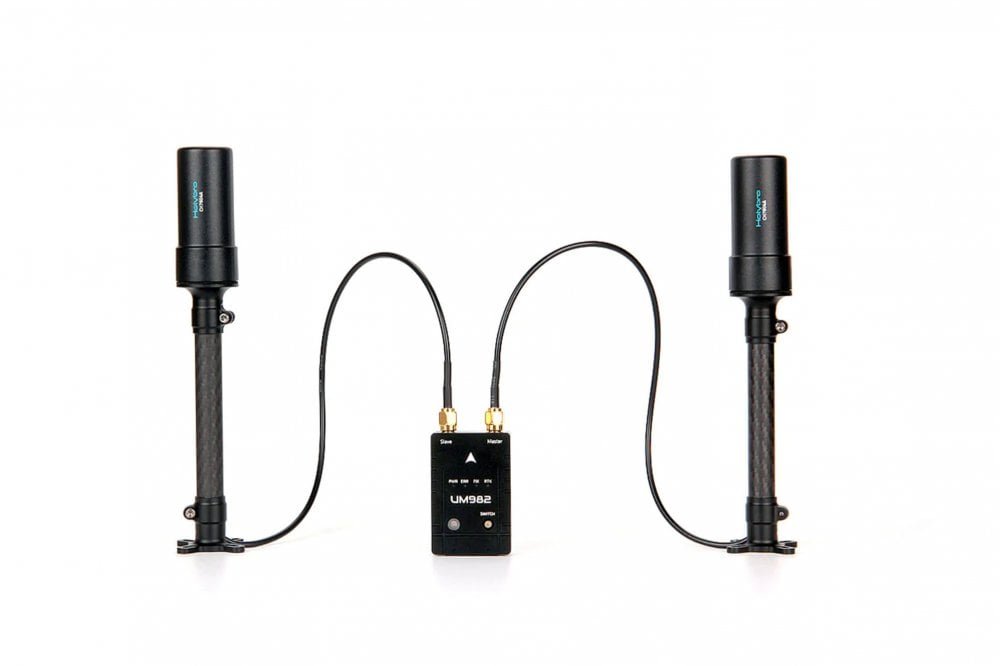

Package Includes

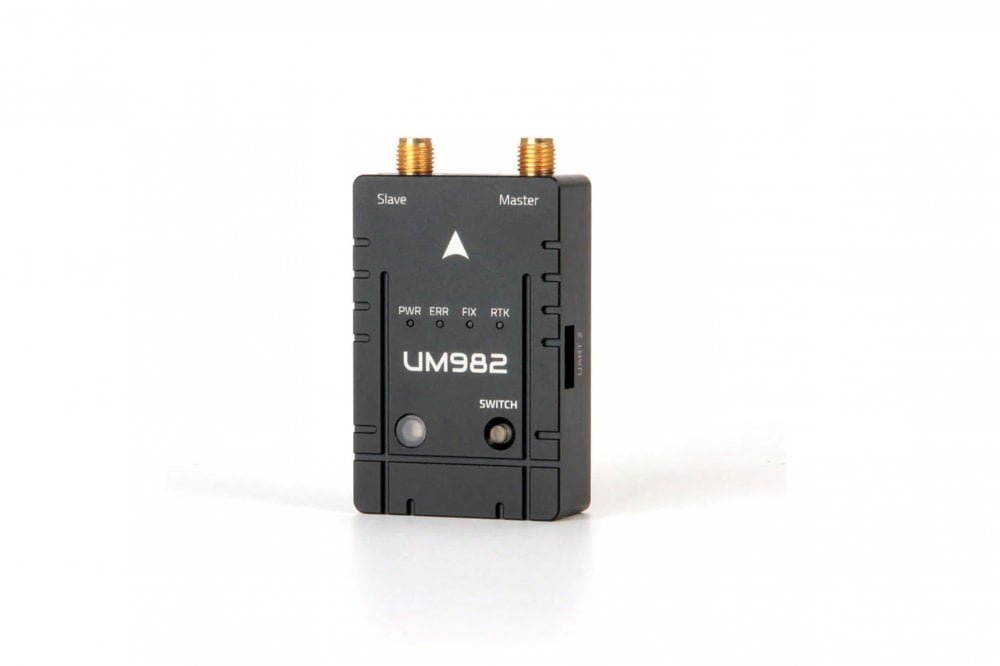

1x H-RTK UM982
2x High Precision Helical Antennas
2x Antenna Mounts
2x SMA Cables
2x 10pin - 10pin JST-GH Cables
1x 10pin - 6pin JST-GH Cable
1x 6pin - 6pin JST-GH Cable
Overview
The Holybro UM982 Dual Antenna RTK GPS provides high-precision positioning information and is capable of generating non-magnetometer moving baseline yaw determinations for autopilots with one single GPS module.
One of the best applications of this GPS is to provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). Using this GPS as a yaw source prevents magnetic interference from the vehicle motors and electrical systems and any environmental interference sources, such as metallic structures or equipment, that can cause incorrect yaw reports to the autopilot.
This works even if the GPSs are not receiving RTCM data from a fixed RTK station or NTRIP server. The device is based on the Unicore UM982 NMEA GNSS module and supports RTK positioning adjustment for centimeter-level accuracy, GPS/GLONASS,Beidou, Galileo, and QZSS global positioning systems.
It also includes a magnetometer, LED, and safety switch button. It also serves as an RTK-corrected vehicle GPS, with or without moving baseline yaw determination, and as a base station GPS for sending RTCM data to a ground control station to provide an RTK source for the vehicle via telemetry.
Features
Dual antennas allow Moving Baseline Yaw (GPS Heading) with just one module
Can replace the traditional compass/magnetometer
Perfect for system/environment with high magnetic interference
Excellent RTK performance
