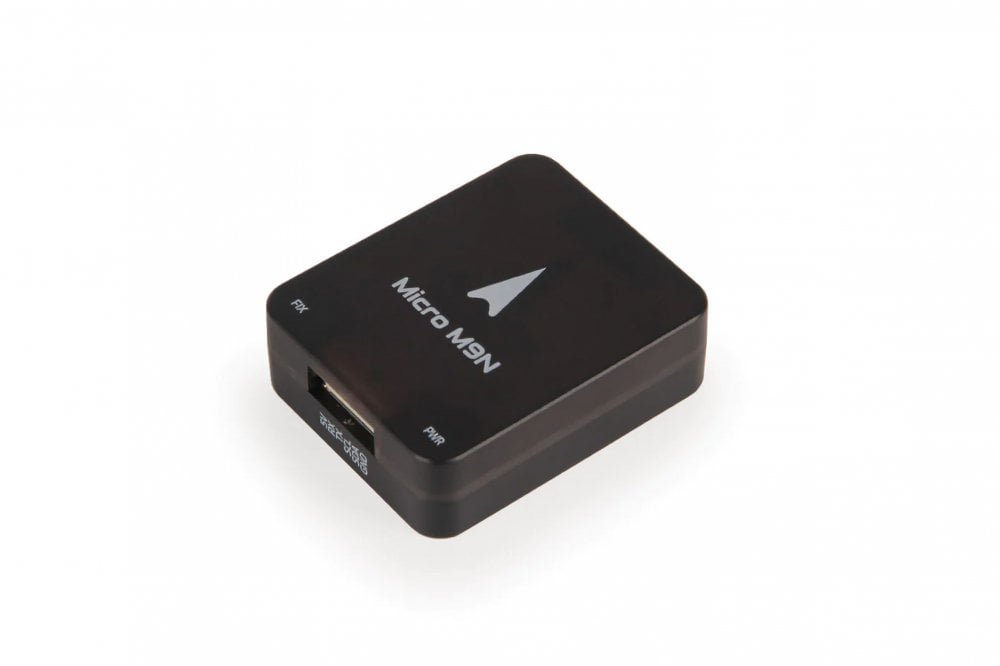

HOLYBRO - Micro M9N GPS - With Case

Features:

• Ublox M9N GNSS Reciever

• Accurate Positioning

• Fast Navigation Update Rate

• IST8310 Compass

• Small Form Factor

Specifications

GNSS Receiver

Ublox M9N

Number of Concurrent GNSS

Up to 4 GNSS
- BeiDou
- Galileo
- GLONASS
- GPS
- QZSS

Frequency Band

- GPS L1
- Galileo E1
- GLONASS L1
- BeiDou B1
- SBAS L1
- QZSS L1

Compass

IST8310

Output Protocol

- UBX (U-blox)
- NMEA

Accuracy

1.5m CEP

Nav. Update Rate

Up to 25 Hz (4 concerrent GNSS)

GNSS Augmentation System

EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S

Default Baud Rate

115200

Input Voltage

4.7-5.2V

Port Type

JST-GH-6P

Antenna

25 x 25 x 4 mm ceramic patch antenna

Power consumption

Less than 200mA @ 5V

Operating Temperature

-40~80C

Dimension

- 32 x 26 x 9mm (w/o Case)
- 34 x 28 x 11mm (With Case)

Weight

- 14g (w/o Case)
- 16g (With Case)

Other

- LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low noise 3.3V regulator

Package contains:

• 1x Micro GPS module

• 1x JST GH 6 Position Connector 15 cm

• 1x JST-GH 6pin Coloured Silicon Cable 15 cm
