HOLYBRO - PM02 Power Module Support to 12S - V3

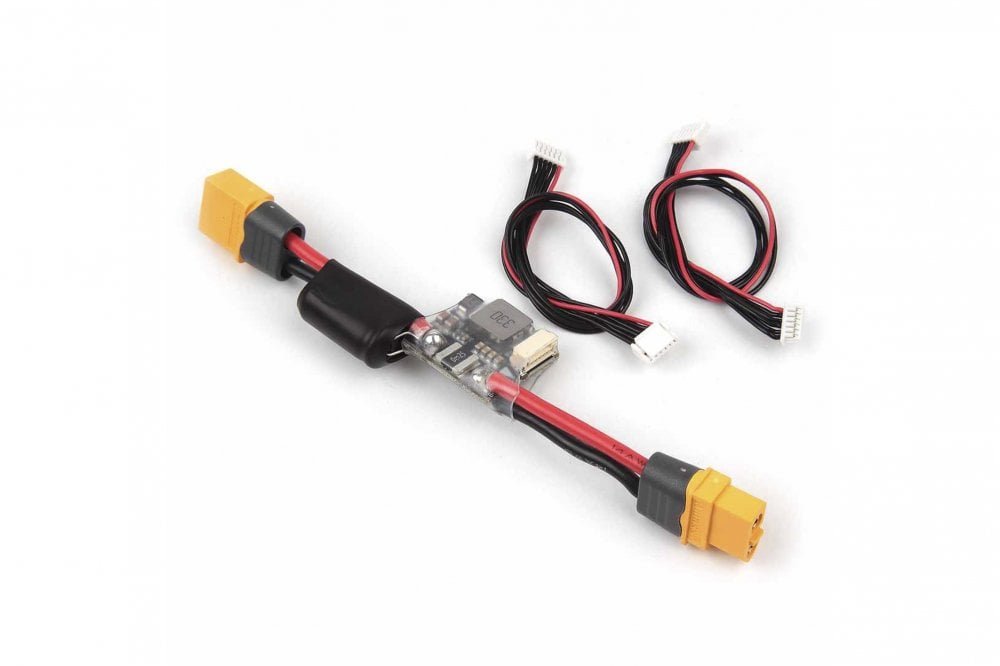

PM02 is a simple way of providing your APM and Pix32 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.
The Power Module is designed to power APM,Pix32, a RC receiver and APM accessories (GPS, radio). It is not designed to power servos. Use your aircraft's own ESC/BEC for that. The GH terminal is also compatible with both Pix32,Pixhawk4,Pixhawk4 mini and Durandal.
Spec：
UBEC input voltage : 7~51v (2~12s LiPo)
Rated current:60A
Max current:120A(<60S)
Max current sensing: 120A
Supports 12S battery
Voltage and current measurement configured for 3.3V ADC
Switching regulator outputs 5.2V and 3A max
Weight: 20g
Mission Planner setup:
Connect PM02 to the battery, also connect it to Mission Planner via USB.
Click “INITIAL SETUP” and come to the menu “Battery Monitor”.
Make “Monito” into “Analog Voltage and Current”.
Make “Sensor” into “9: Holybro Pixhawk4 PM”.
Make “HW Ver: "The Cube or Pixhawk" （pixhawk4,pixhawk4mini,pix32v5,pix32）”
“HW Ver: Leave this blank（Durandal）”
Input “18.182” into Voltage divider (Calced).
Input “36.364” into “Amperes per volt”.
Disconnect and reconnect it to finish the setting up.（“Measured battery voltage” shows the current quantity of electric charge of the battery.）
