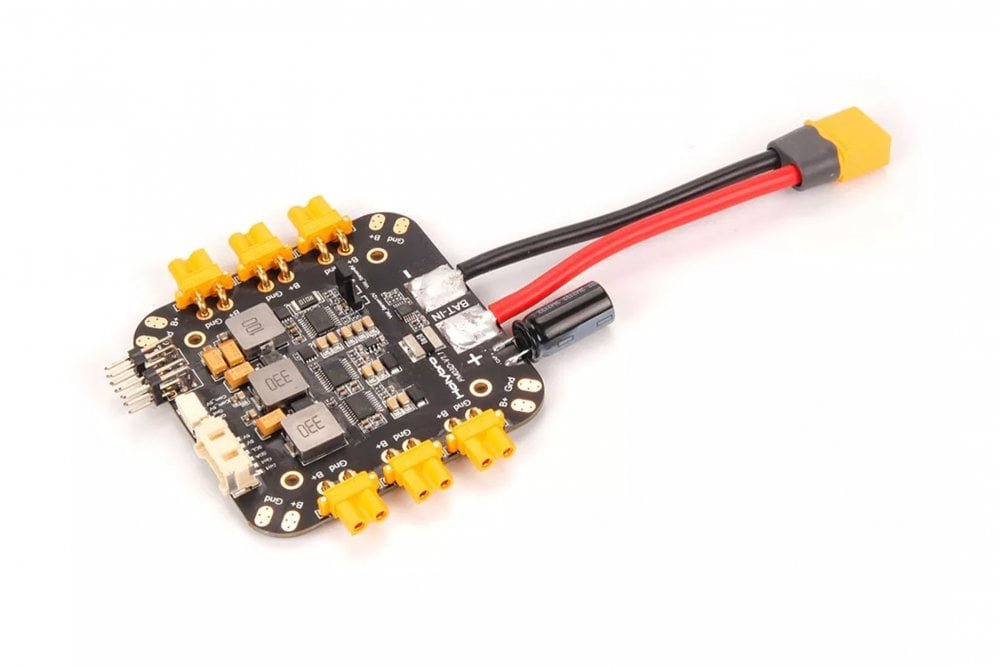

HOLYBRO - PM03D Power Module
Holybro - PM03D Power Module
Applicable for Pixhawk 5X
Overview
PM03D provides regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all through a 6pin 2.00mm CLIK-Mate cable. Compatible to flight controller that uses I2C power monitor such as the Pixhawk 5X and up.
It is design for multi-rotor like the X500 V2. It has both XT-30 & XT-60 connectors preinstalled for motor ESCs and Battery, as well as two 5V BEC and a selectable 8V/12V output different kinds of peripheral devices.
Note: This PM is not compatible with flight controller that uses analog PM such as the Pixhawk4, Pixhawk4 Mini, pix32 v5, or Durandal flight controllers.
Features
Plug & play, no additional setup required for QGroundcontrol & Mission Planner
XT-30 connectors and solder pads for easy motor ESC connection
Onboard voltage regulators: two 5.2V & one selectable 8V/12V
5V/A ports for powering companion computer or peripheral device
Selectable 8V or 12V triple row pin header for powering peripheral device
Technical Specification
-Maximum input voltage: 6S battery
-Rated current: 60A
-Max current: 120A (
-Max current sensing: 164A
-Connections
XT-60 for battery
XT-30 for motor & peripheral device (battery voltage)
Solder pads in each corner (battery voltage)
CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)
JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
-Dimension: 84*78*12mm (excluding wires)
-Mounting: 45*45mm
-Weight: 59g
The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (
Package Includes
1x PM06 board
1x 80mm XT60 connector wire (pre-soldered)
1x Electrolytic capacitor: 220uF 63V (pre-soldered)
1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)
4pin JST GH to USB Type C
4pin JST GH to barrel plug (2.1*5.5mm)
4pin JST GH to barrel plug (2.5*5.5mm)
4pin Pin Dupont Cable (2pc)
Nylon standoffs & nuts
