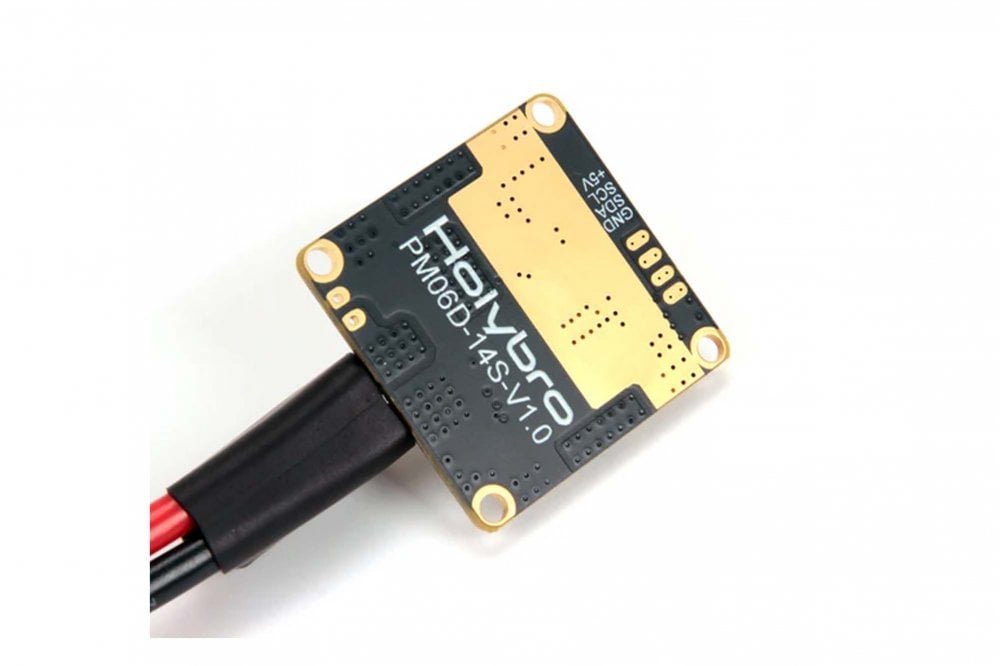

HOLYBRO - PM06D Power Module 14S
PM06D provides regulated power supply for your Pixhawk® 5X & 6X from the battery, as well as current consumption and battery voltage measurements, all through a 6pin cable. It has built-in power distribution, allowing you power your ESC and FC with the same board.
The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 14S. The Power Module comes completely assembled with a XT60 connector and a capacitor. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.
Specification:
Input voltage: 2S- 14S
PCB Cont. Current Rating: 70A
PCB Burst Current Rating: 120A (
Max current sensing: 327A
Voltage and current monitor with I2C compatible interface
Connector Outputs: 5.2V and 3A max
Weight: 24.5g
Current Rating:
The PM06D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current
Package contains:
1x PM06D Power Module
1x 6pin 2.00mm pitch cable
