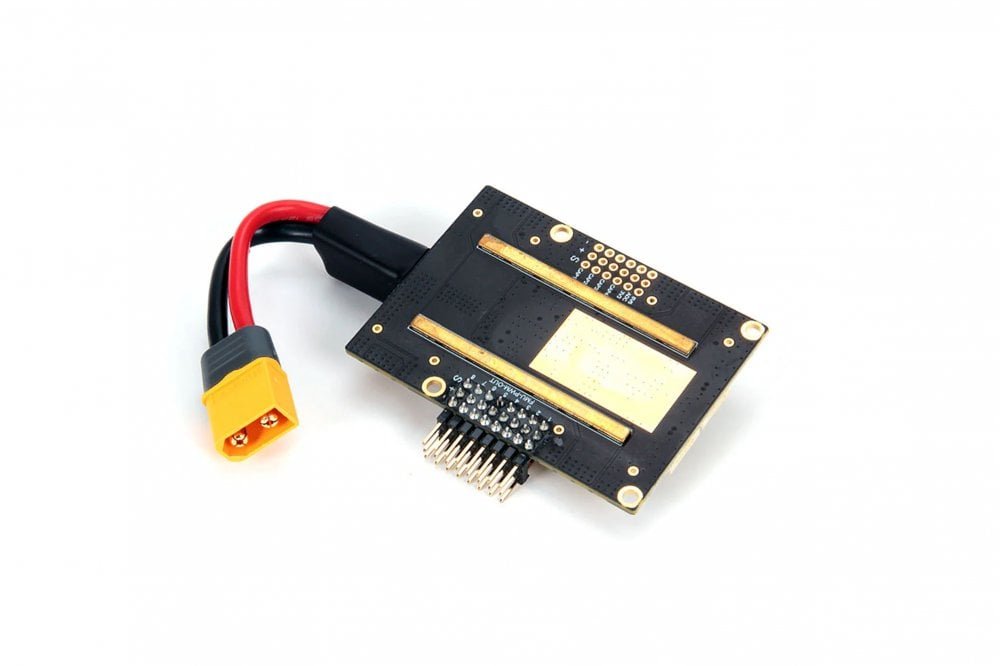

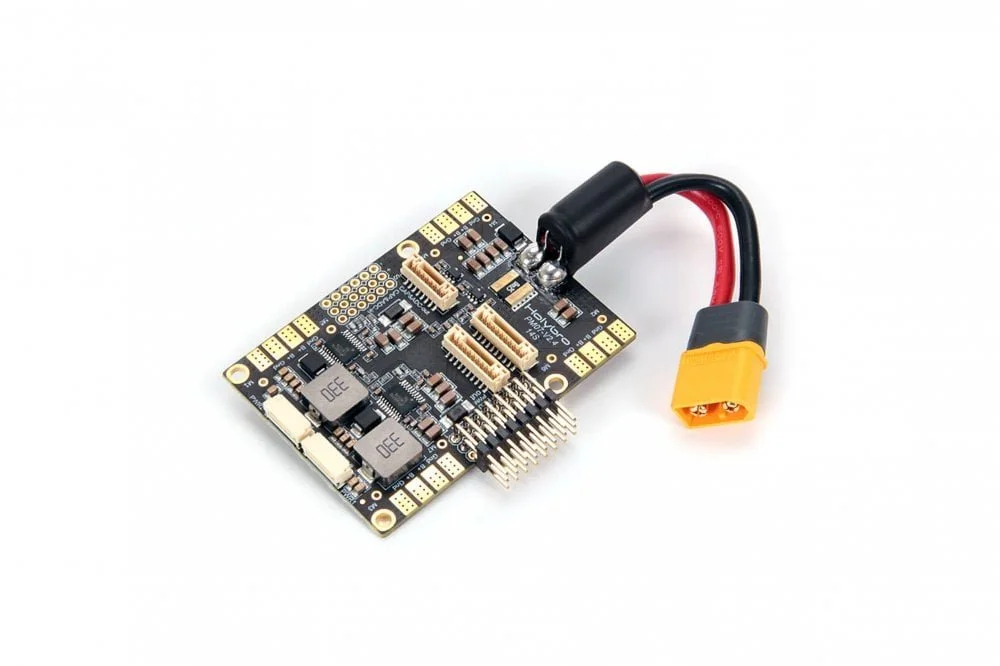

Holybro - PM07 Power Module (14S) HOLYBRO - PM07 Power Module (14S)
This PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for up to 8 ESCs. It is designed specifically for flight controller that do not have built-in servo header pins like the Pixhawk 6C & Pixhawk 4. It comes with pre-soldered wires, capacitor, and XT60 connector. It has two power output port with independent BEC and circuitry.
Specifications：
Input voltage: 2S-14S
PCB Cont. Current Rating: 90A
PCB Burst Current Rating: 140A (
Output: DC 5.2V & 3A Max
Voltage Divider: 18.182
Amperes per Volt: 36.364
Note:
The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).
Mechanical Specification:
Dimensions:68*50*10 mm
Mounting Holes:45*45mm
Weight: 43.8g
Package Include：
1x PM07 board
1x 80mm XT60 connector wire (installed)
1x Electrolytic capacito: 220uF 63V (installed)
2x JST GH 10P Cable
1x JST GH 8P Cable
2x JST GH 6P Cable
