Holybro - PM08 Power Module (14s, 200A)

Code: HB-XX-PM08-15021

This PM08 Power Module supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable to the Autopilot.

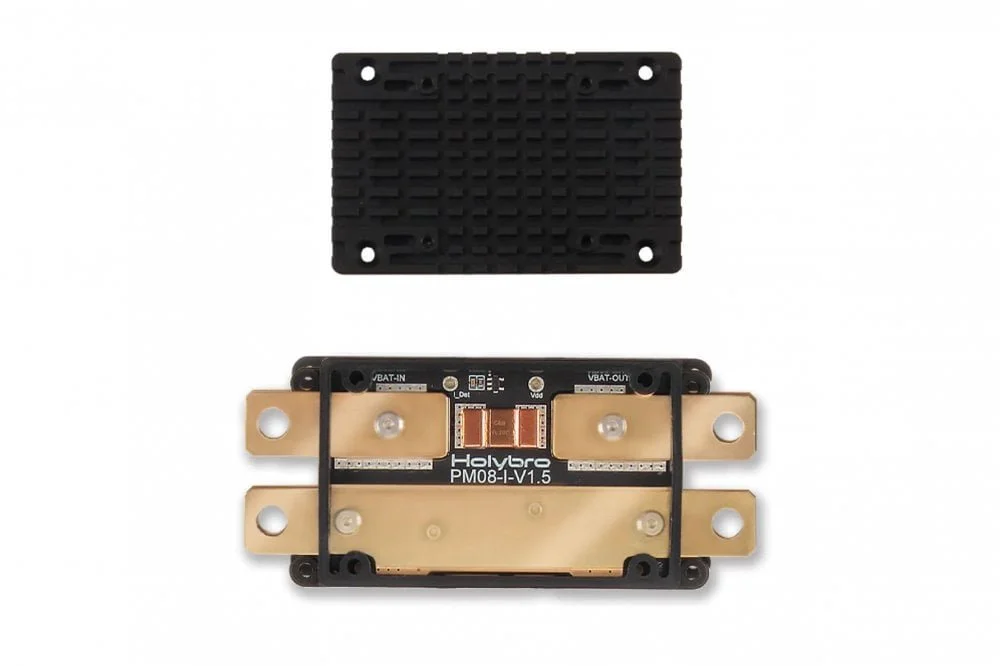

This power module is designed for vehicle with high power requirement. It comes housed in a aluminum heat sink case with fan, protecting the module from external elements and actively dissipates heat generated during operation to ensures durability and optimal performance.

Please Note:

• This analog power module does not Pixhawk 5X/6X. Please use digital power module that end with a "D" for the 5X/6X series.

• Wire & connector sold separately

For Power Module Dimension see here

Specification:

• Input Voltage: 2S-14S

• PCB Cont. Current Rating: 200A

• PCB Burst Current Rating: 1000A (

• Max Current Sensing: 237.6A

• Output: DC 5.1-5.3V & 3A Max

• Voltage Divider: 18.182

• Amperes per Volt: 72

• Dimensions: 101*45*26mm

• Mounting hole: 79mm*38.1mm

• Weight: 151g

Features:

• Support 2S - 14S Battery

• 200A Cont. Current Rating

• Easy to Setup

• Aluminum Case for Heat dissipation

Package includes:

• 1x PM08 Power Module

• 1x 40x40mm Fan

• 1x JST GH 6 Position Connector 15 cm

• 4x Sets of Screws, Washers, and Nuts
