Holybro - Radio Telemetry Kit 500mW 433Mhz
Code: HB-00-01-Radio-Telementry-Kit-500mW-433Mhz-17014
The use of this product in the UK requires addition permission
Please check your local restrictions on the use of this product
This Holybro SiK Telemetry Radio Kit is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground). This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup a telemetry connection between your Autopilot and a ground station. It uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot. The radios can be either 915Mhz or 433Mhz and you should purchase the model which is appropriate for your country/region.
Features:
Open-source SIK firmware
Plug-n-play for Pixhawk Standard Flight Controllers
Easiest way to connect your Autopilot and Ground Station
Interchangeable air and ground radio
Micro-USB port (Type-C Adapter Cable Included)
6-position JST-GH connector
Specification:
500 mW maximum output power (adjustable) -117 dBm receive sensitivity
RP-SMA connector
2-way full-duplex communication through adaptive TDM UART interface
Transparent serial link
MAVLink protocol framing
Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
Error correction corrects up to 25% of bit errors Open-source SIK firmware
Configurable through Mission Planner & APM Planner
FT230X/FT231 is a USB to BASIC UART IC
Dimensions - 28 x 53 x 10.7mm (without antenna)
Electrical Data Supply voltage: 5V DC (from USB or JST-GH)
Transmit current: 100 mA at 20dBm
Receive current: 25 mA
Serial interface: 3.3 V UART
Package contains:

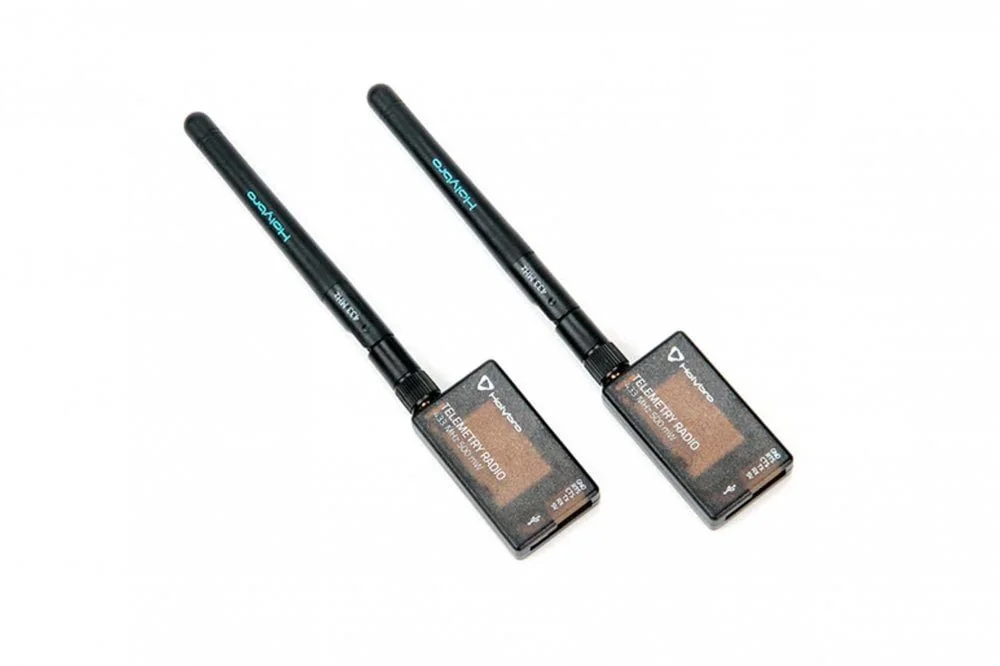

2x Radio modules with antennas
1x Micro-USB to USB-A cable
1x Micro-USB to Micro-USB OTG adapter cable
Micro USB to Type C Adapter
JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)
JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)
