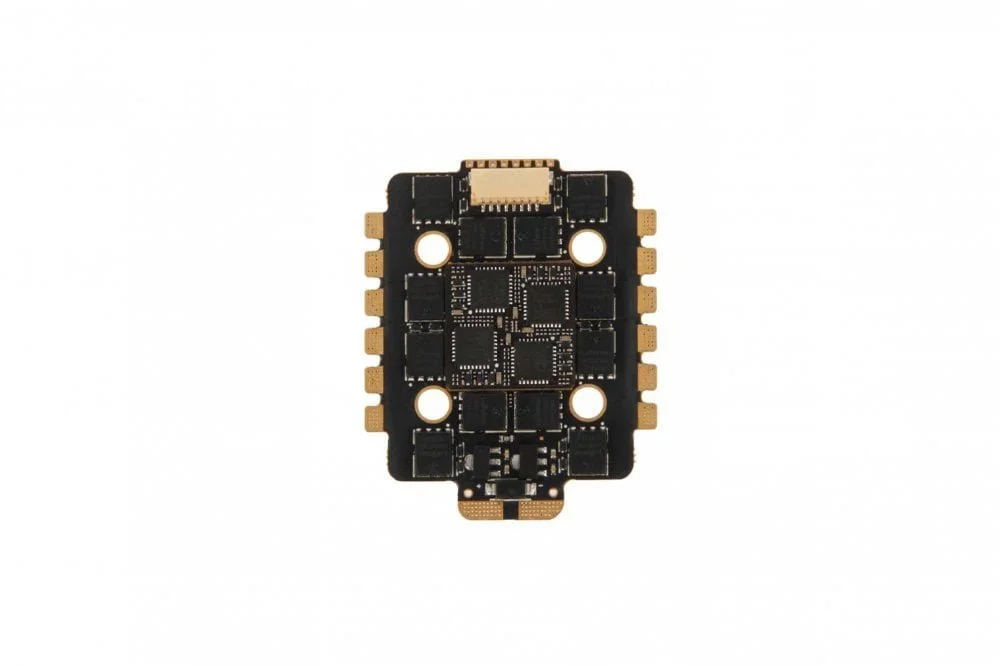

Holybro - Tekko32 F4 4in1 Mini 50A ESC (AM32) - 31246

Code: HB-07-05-Tekko32-F4-4in1-Mini-50A-ESC-AM32-31246

Feature:

• All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink

• New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)

• Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification:

• Continuous current: 50A x4

• Burst current: 60A x4

• Battery support: 4-6S

• PWM frequency: 8k to 96k

• Support DShot 150/300/600/1200

• Support MultiShot/OneShot/Proshot/PWM, etc.

•  ESC Telemetry Support

• Onboard analog current sensor

• AM32 Firmware

• 1000uf 35v capacitor included

• Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)

• Dimensions: 46.6x38x6mm / Weight: 15.6g

• Firmware target: AM32_F4A_4IN1_F421

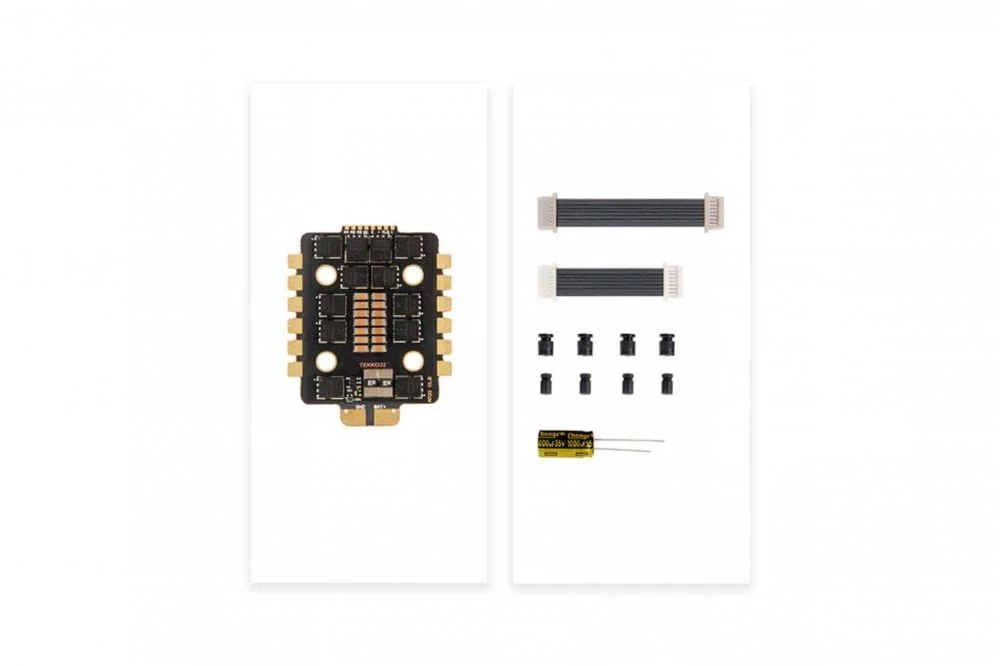

Package contains:

• 1x Tekko32 F4 4 in 1 mini 50A ESC

• 4x M2 Anti-Vibration Silicone Grommet Insert

• 4x M3 Anti-Vibration Silicone Grommet Insert

• 1x Electrolytic capacitor: 1000uF 35v

• 1x 8pin to 8pin 1mm pitch 65mm cable

• 1x 8pin to 8pin 1mm spacing 25mm cable
