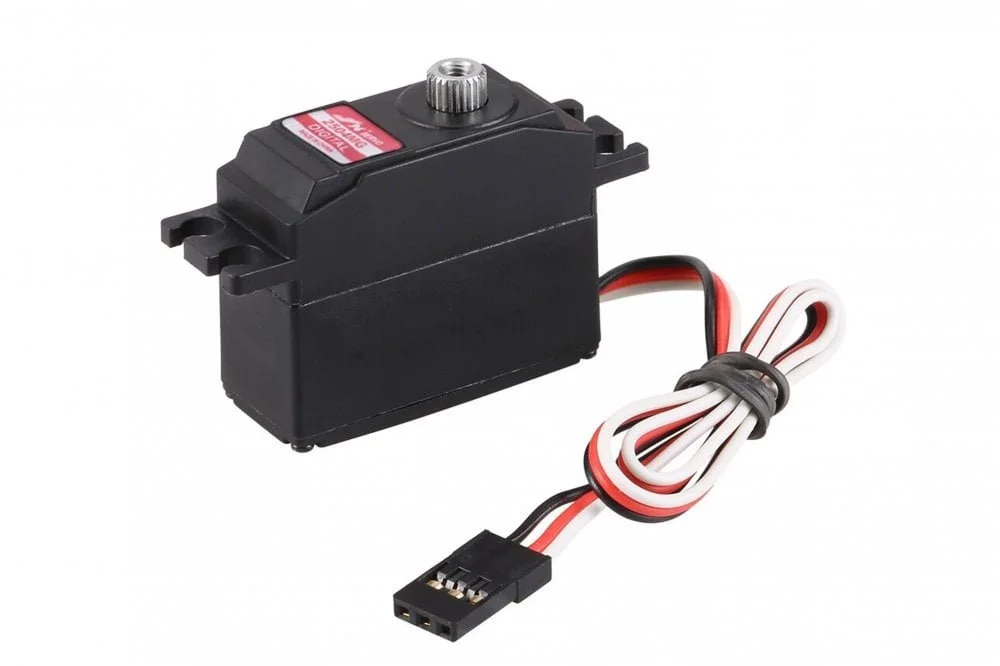

Code: JX-01-04-PDI-2504MG

High performance digital coreless servo

High-precision Taiwan-made aluminium gears with hard anodizing

Dual ball bearings

Specifications

Dead band: 1μs

Working frequency: 1520μs / 330hz

Operating Speed (4.8V): 0.12sec/60°

Operating Speed (6V): 0.10 sec/60°

Stall Torque (4.8V): 3.35 kg.cm (46.52 oz/in)

Stall Torque (6V):  4.52kg.cm (62.7oz/in)

Dimensions: 36X15X32.4 mm /1.42 X0.59X1.28 in

Weight:  25.65 g (0.90oz)

Connector Wire Length: JR  180 mm (7.09in)

Bearing: 2BB Tooth Count: 25
