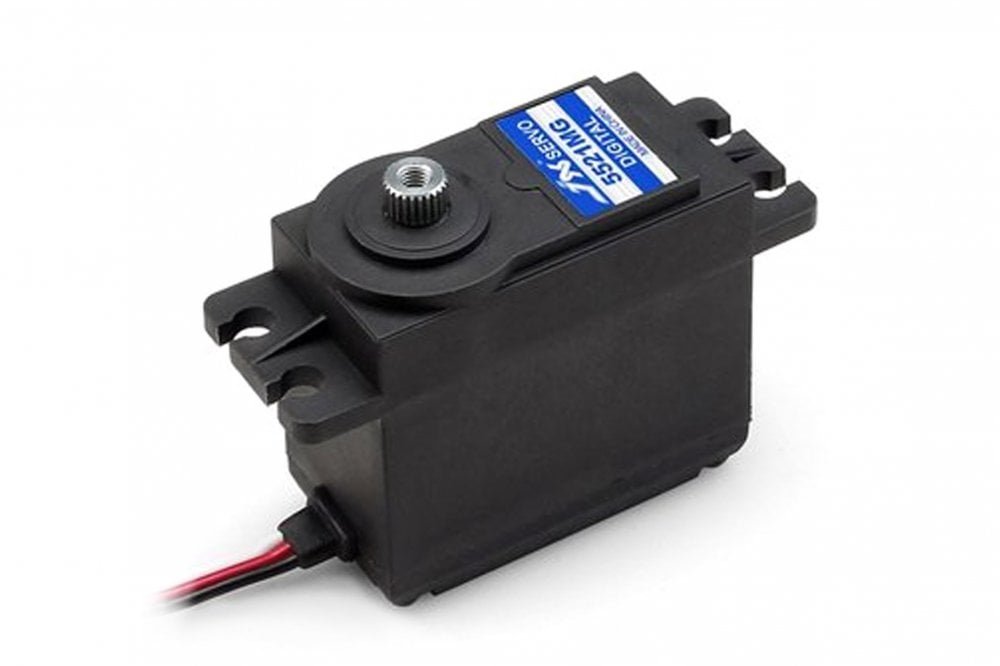

Code: JX-01-05-PDI-5521MG

Dual ball bearings High quality brushed motor Small size and light weight Large stall torque of 20.32Kg/cm

Specifications:

High performance digital standard servo

High-precision Taiwan-made metal gears

High quality brushed motor

Dual ball bearings

Specifications:

Dead band: 2μsl

Working frequency: 1520μs / 330hz

Operating Voltage:  DC4.8~6.0 V

Operating Speed (4.8V): 0.18sec/60 degrees

Operating Speed (6V): 0.16 sec/60 degrees

Stall Torque (4.8V): 17.25kg.cm (239.55oz/in)

Stall Torque (6.0V):  20.32 kg.cm (281.89 oz/in)

Dimensions: 40.5X20.2X44.2mm /1.59 X0.80X1.74 in

Weight:  55.6 g (1.96oz)

Connector Wire Length: JR  265 mm (10.43in)
