JX Servo JX - PDI HV 7232 MG
Code: JX-02-02-PDI-HV-7232-MG
High-performance and high-voltage standard digital servo.
High-precision alloy hard anodizing metal gear.
Coreless motor and dual ball bearing.
CNC aluminous mesochite.
When 2.5A last 15s,will be cut off to protect servo.
Brand: JX Servo
Item: PDI-HV7232MG
Dead band: 1μs 1520μs / 330hz
Max PW:500-2500us
Angle: 180° compatible
Motor: Coreless motor
Operating Voltage: DC 4.8V-8.4V
Operating Speed: (6.0V) 0.12 sec/60°
Operating Speed: (8.4V) 0.09 sec/60°
Stall Torque: (6.0V) 26.2 kg.cm (363.83oz/in)
Stall Torque: (8.4V) 31.5kg-cm 437.43 oz/in)
Dimensions: 40.5X20.5X36mm /1.59 X0.80X1.43 in
Weight: 72g
Bearing: 2BB
Connector Wire Length: JR 265mm

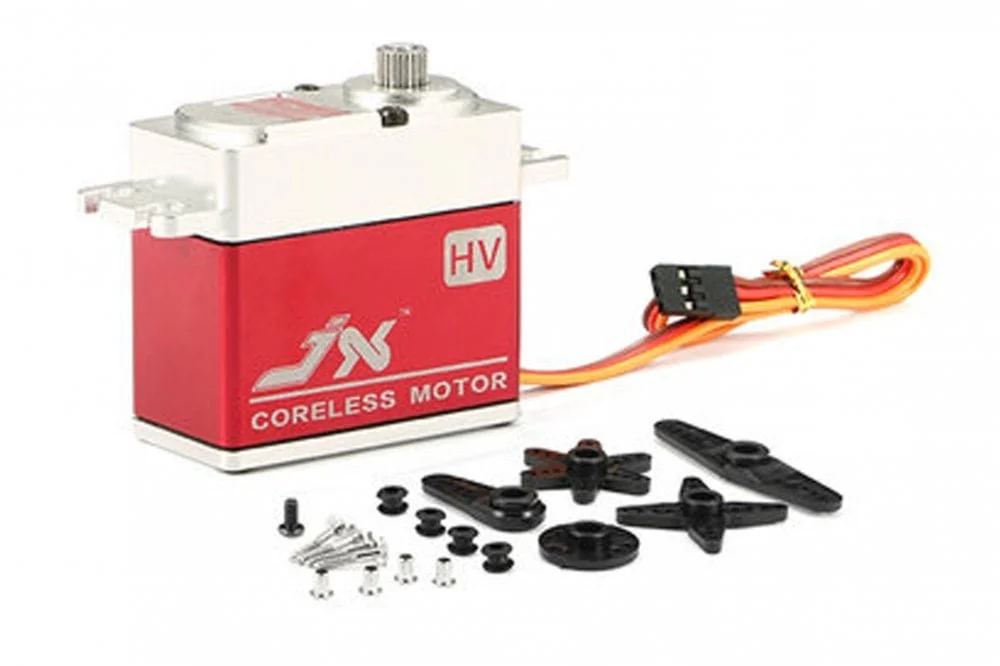

Package included:
1 x JX Servo PDI-HV7232MG Servo
1 x Accessories bag
