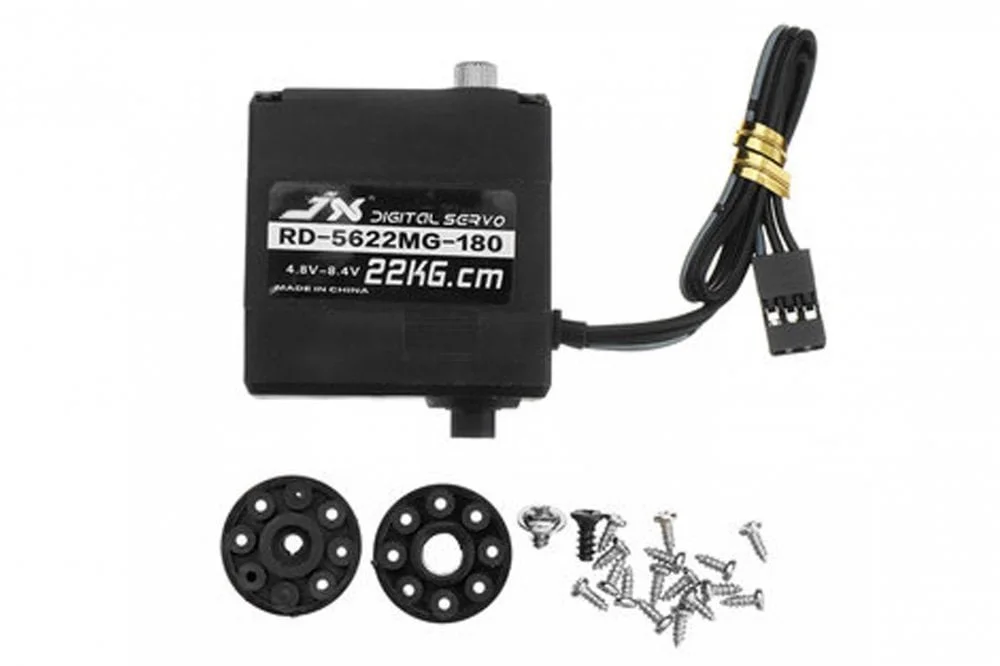

Code: JX-02-06-RD-5622MG-180

-- High performance, digital robot servo -- High precision metal gear -- High quality core motor -- 180° angle

Specifications

Dead band: 4μs

Neutral point: 1500μs

Pulse width：500μs-2500μs

Motor: Core

Max angle：180°±2°

Frequency: 330hz

Operating Voltage：4.8V/ 6V/ 7.4V

Operating Speed(4.8V): 0.22sec/60°

Operating Speed(6.0V): 0.20sec/60°

Operating Speed(6.0V): 0.18sec/60°

Stall torque(4.8V): 14.8kg.cm

Stall torque(6.0V): 17.6kg.cm

Stall torque(7.4V): 22.0kg.cm

Dimension: 40.5X20.3X40mm

Weight:  56 g

Connector Wire Length: JR  200mm

Spline Count: 25T
