JX Servo PDI-HV5215MG

£49.50

Code: JX-03-08-PDI-HV5215MG

  • Short body 15kg high-pressure digital steering gear, apply for RC model plane and car, robot and mechanical arm.

  • Applicable model: 1/8 1/10 1/12 remote control vehicle.

Features

  • High performance 15kg high torque high pressure digital short body steering gear

  • High precision gear made in Taiwan

  • High quality coreless motor

  • Double ball bearing

Specifications

  • Dead band: 2us

  • Working frequence: 1520μs / 330hz

  • Operating Voltage: DC6~8.4V

  • Motor: coreless motorOperating

  • Temperature Range: -10 to + 60°COperating Speed (6V): 0.09sec/60°

  • Operating Speed (8.4V): 0.07sec/60°

  • Stall Torque (6V):13.2kg.cm

  • Stall Torque (8.4V): 15.6kg.cm

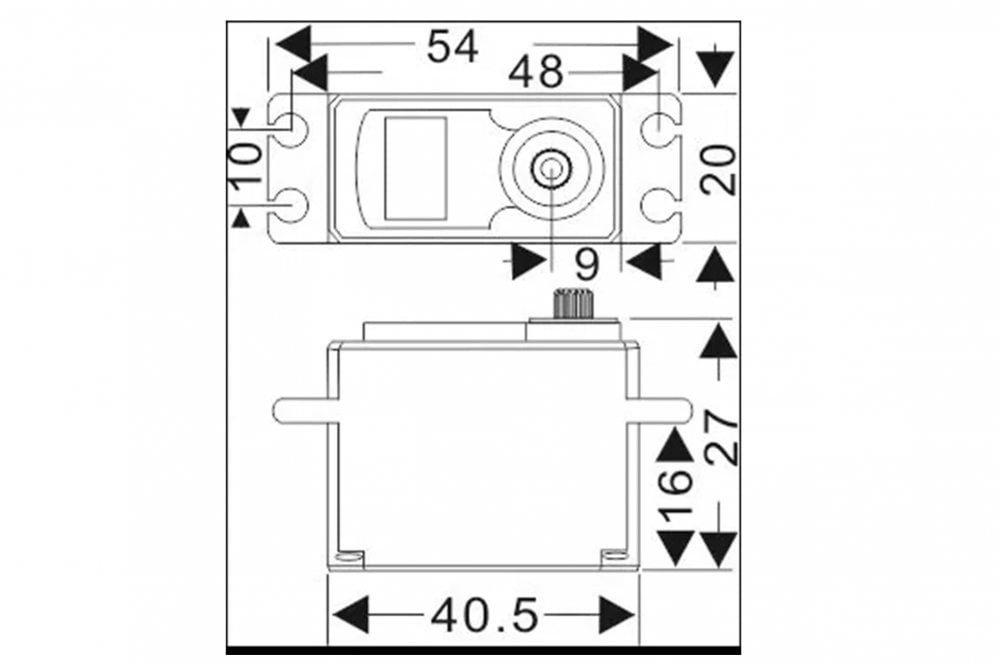

  • Dimensions: 40.5X20.5X26.8mm

  • Weight:52 g (1.67oz)Connector

  • Wire Length: JR 260 mmBearing: 2BB

  • Teeth:25T
