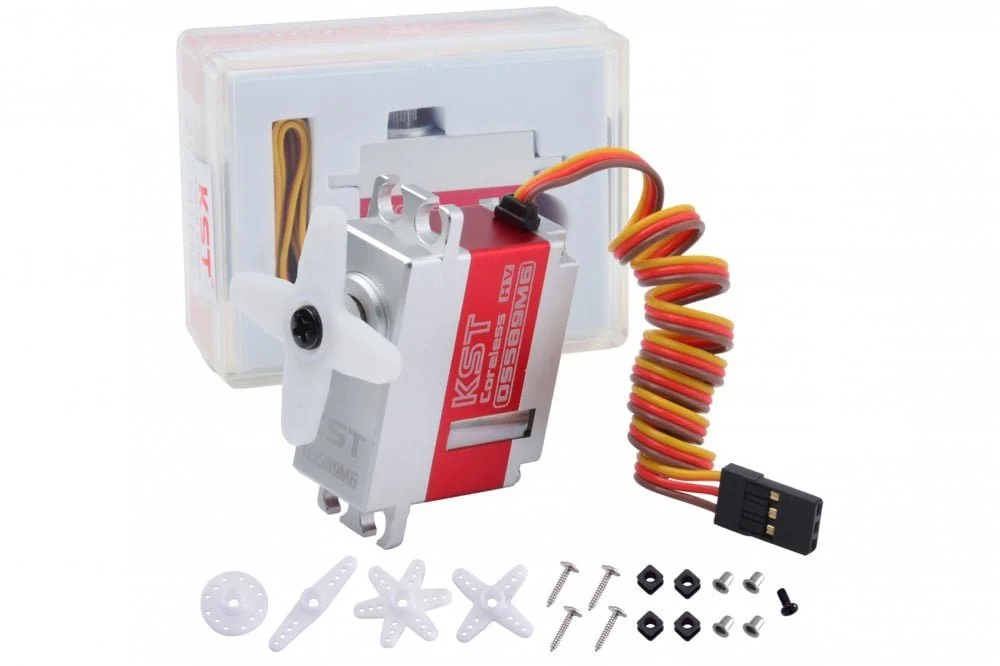

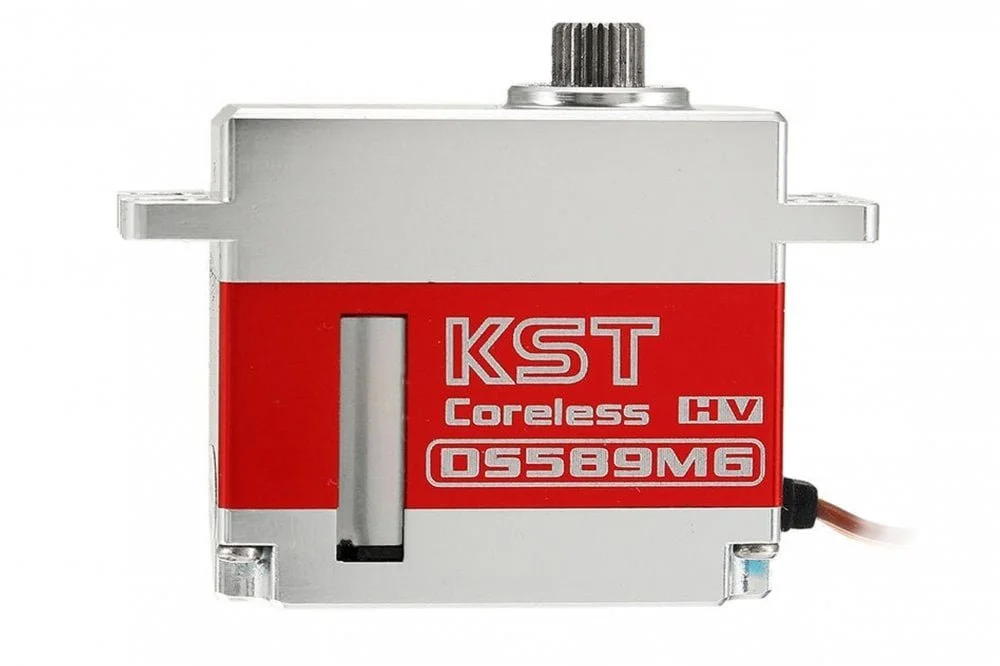

KST DS589MG 9.2KG 0.08sec Digital HV Metal Gear Servo
Code: KST-02-03-DS589MG-9.2KG
KST Servos are renowned for Quality at realistic prices.
From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you.
Specification
Operating Voltage: DC6.0V-8.4V
Dimension: 35.50*15*32.70mm
Weight: 40g
Torque:
6.50Kg.cm @ 6.0V
8.00Kg.cm @ 7.4V
9.20Kg.cm @ 8.4V
Speed:
0.10sec/60° @ 6.0V
0.09sec/60° @ 7.4V
0.08sec/60° @ 8.4V
Working Frequency: 1520us/333Hz, 900us-2100us
