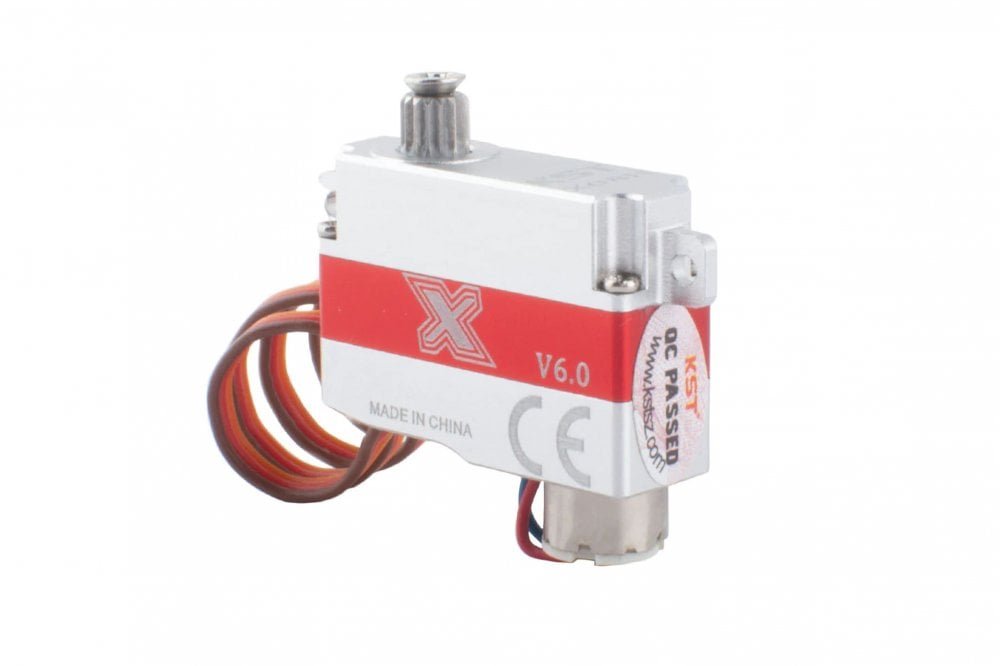

KST X08H V6.0 Servo Metal Gear Digital

Code: KST-02-02-X08H-V6

Features

• Compact and lightweight design

• Excellent torque and speed

• Designed for high-performance RC Gliders

• Excellent heat dissipation

Specification

• Rated Voltage: DC7.4V

• Voltage Range: DC3.8V-8.4V

• Torque: 1.4kg.cm@3.8V, 2.2kg.cm@6.0V, 2.8kg.cm@8.4V

• Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.09sec/60°@8.4V

• Working Frequency: 1520us/20KHz

• Default Travel Angle: ±60° = 120° Total

• Temperature Range: -10℃……+65℃

• Soft Start: Yes

• Programmable: Yes

• Case Material: Aluminum Alloy

• Motor Type Coreless: DC Motor

• Gear Set Material: Hardened Steel

• Position Sensor: Potentiometer

• Case Dimensions: 23.5*8*16.8mm±0.2mm

• Weight: 8g±10%

 Package contains:

1x KST X08H V6.0 Servo
