Matek Systems -SERVO PDB, W/ BEC 5.5-36V TO 5-8.2V

£8.50

Code: MTS-06-06-SVPDB-8S

Package contains:

  • 1x SVPDB-8S,

  • Dupont 2.54mm pins

Specifications

  • 5.5V to 36V Operating Input Range

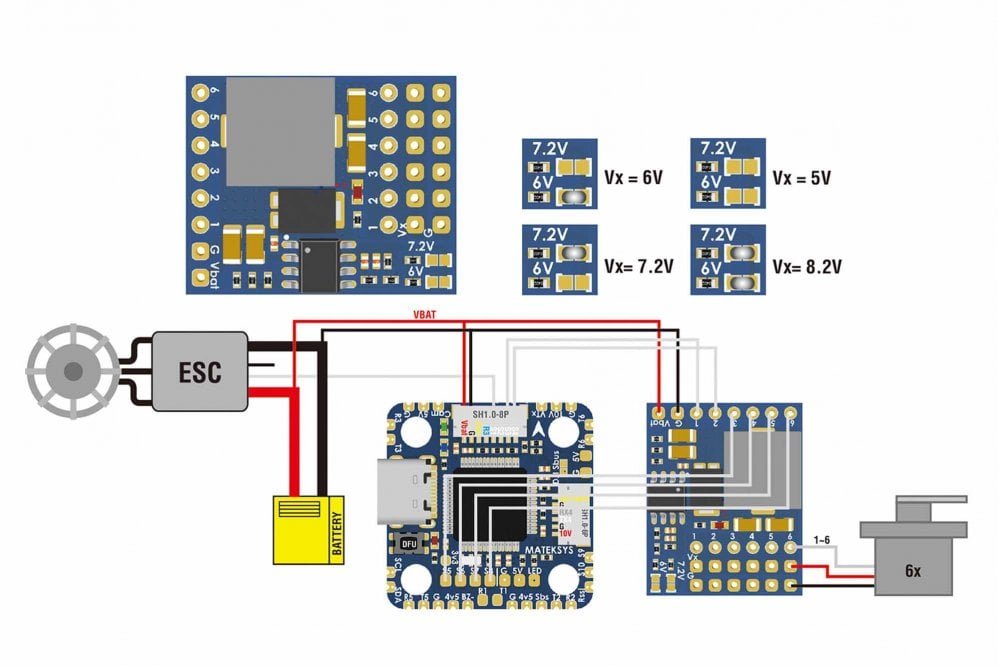

  • Vx for servos,  5V, 6V, 7.2V, 8.2V Adj. Default is 5V.

  • 4A Continuous load current, 7A Burst

  • Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage

  • Output Short-circuit tolerant (3 seconds)

  • No protection for reversed input polarity

  • Pins distance: 2.54mm

  • Size & Weight: 26 x 21 x 5mm, 4g

 Applications

  • Flight controllers without dedicated BEC for servos

  • Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

Quantity:
Add To Cart

Code: MTS-06-06-SVPDB-8S

Package contains:

  • 1x SVPDB-8S,

  • Dupont 2.54mm pins

Specifications

  • 5.5V to 36V Operating Input Range

  • Vx for servos,  5V, 6V, 7.2V, 8.2V Adj. Default is 5V.

  • 4A Continuous load current, 7A Burst

  • Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage

  • Output Short-circuit tolerant (3 seconds)

  • No protection for reversed input polarity

  • Pins distance: 2.54mm

  • Size & Weight: 26 x 21 x 5mm, 4g

 Applications

  • Flight controllers without dedicated BEC for servos

  • Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
