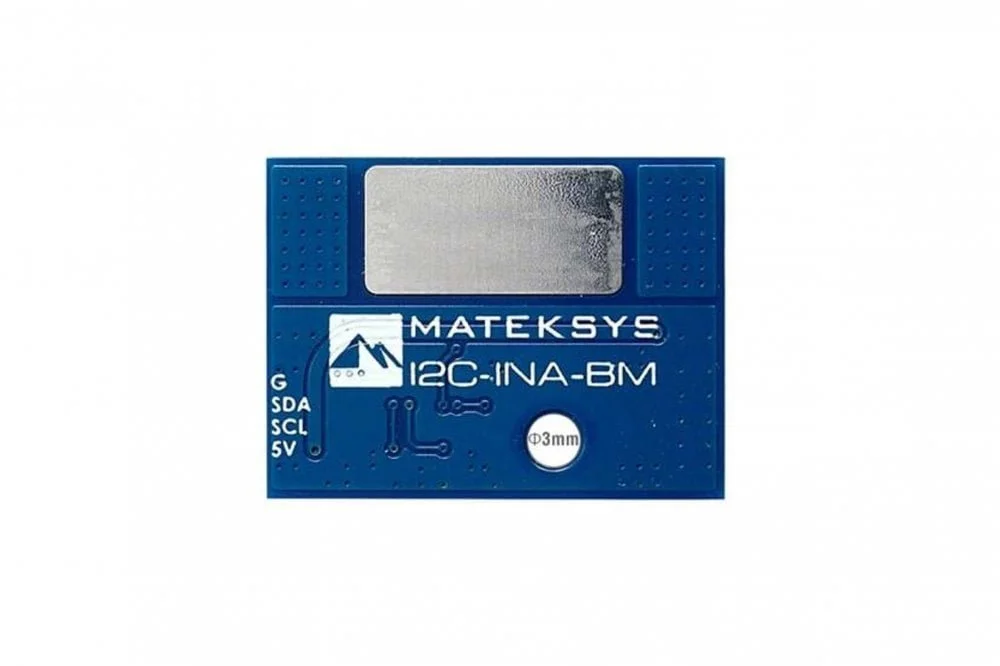

Matek Systems - Ultra Precise I2C Power Monitor

Code: MTS-02-02-Ultra-Precise-12C-Power-Monitor-I2C-INA-BM

Introducing the MATEKSYS Ultra Precise I2C Power Monitor - INA-BM, powered by the acclaimed TI INA228 chip for unmatched accuracy and reliability in digital power monitoring. With a typical resistance of 200 μΩ, it minimizes power loss and supports up to three units in parallel for comprehensive monitoring. Enjoy hassle-free operation with no calibration needed and seamless compatibility with ArduPilot firmware for precise current and bus voltage readouts. Designed by MATEKSYS, the INA-BM guarantees unmatched performance and versatility across various applications.

Features:

• Ultra-Precise Digital Power Monitoring

• No Calibration Required

• Versatile Applications

• Robust Construction

• Parallel Connectivity

• Compact Design

• Low Power Loss

• Compatibility

Specification:

• Load Current on Current Sensing Resistor: 150A (Continuous), 204.8A (Burst)

• Power Supply for I2C-INA-BM Board: 4~9V @5V pad/pin

• Ultra-Precise Power Monitor: INA228 85-V, 20-Bit

• Operating Temperatures: -40~125 °C

• Battery Voltage Sense Input: 0~85V

• Current Sense Range: 0~204.8A

• Power Consumption: 1mA

• 3.3V Indicator: LED Red

• Voltage Accuracy: ±0.1%

• Current Accuracy: ±2%

• Interface: I2C

• Parameters

Package contains:

• 1x MATEKSYS Ultra Precise 12C Power Monitor - INA-BM

• 1x JST-GH-4P to JST-GH-4P 20cm silicone wire
