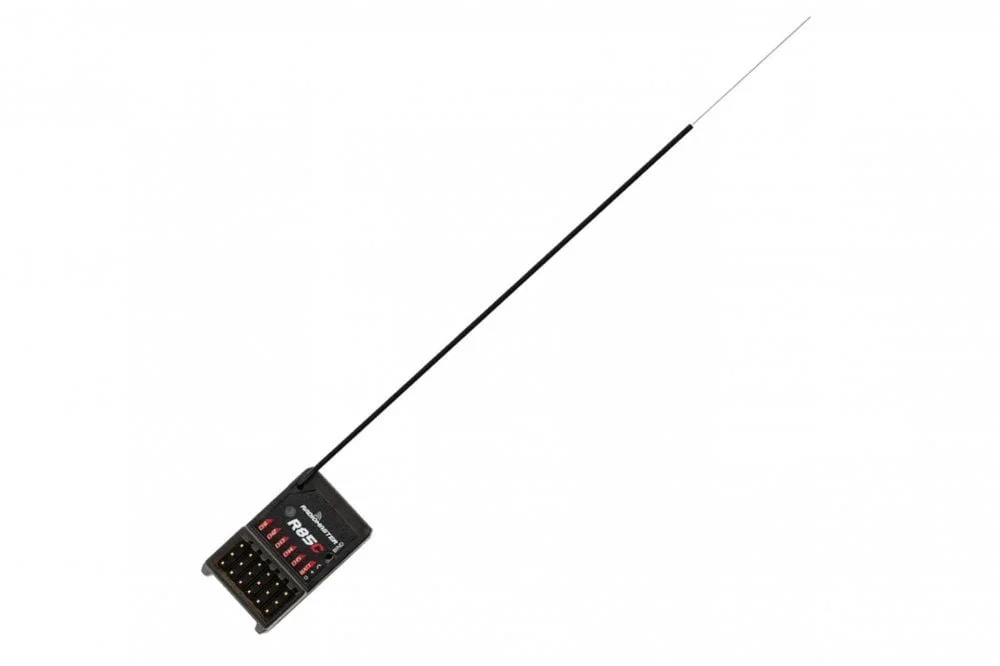

RadioMaster - R85C Receiver

Code: RM-06-06-ER3C-i-ELRS-LBT-PWM-Receiver

The R85C receiver is Frsky D8 / D16 and Futaba SFHSS compatible and offers a range suitable to many RC modelers. Built-in a TCXO (temperature compensated crystal oscillator), ensures high stability and accuracy in frequency control, compensating for temperature variations.

Features:

• Compatible with Frsky D8 / D16 and Futaba SFHSS

• High-sensitivity 2.4G Antenna

• Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment

Specifications:

• Item: R85C Receiver

• Power supply: DC 4.5 - 8.4V

• Frequency range: 2400-2483.5Mhz

• Support protocol: D8/D16/SFHSS

• Output channel: 5CH PWM

• Antenna type: high-sensitivity 2.4G antenna

• Telemetry power: 100mW / 20dBm

• Weight: 5.55 grams

• Dimensions: 31.0*18.5*13.0 mm

Package contains:

• 1x R85C Receiver

• 1x User Card
