RadioMaster RM-Ranger-Micro-Comb-LBT

Code: RM-02-01-Ranger-Micro-Comb-LBT

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Features:

• Built-in ExpressLRS Backpack

• High-efficiency cooling system

• Wifi and Bluetooth support

• Packet rates up to F-1000Hz

• T-antenna included

• With the Micro connector, support TX16S MKII and TX12 MKII radio

Specification:

• Item: Ranger Micro Module

• Regulatory Domain: ISM2400

• MCU: ESP32(main), ESP8285(aux, as ESP backpack)

• RF chip: SX1281IMLTRT

• Frequency Range: 2400 MHz - 2480 MHz

• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)

• Minimum receiver refresh rate: 25Hz

• RF Output Power: Default 100mW

• Wifi Support: Yes

• Bluetooth support: Yes

• XT30 Power supply voltage: DC 6V - 16.8V

• Weight:  50g (with antenna) / 40.5g (without antenna)

• Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

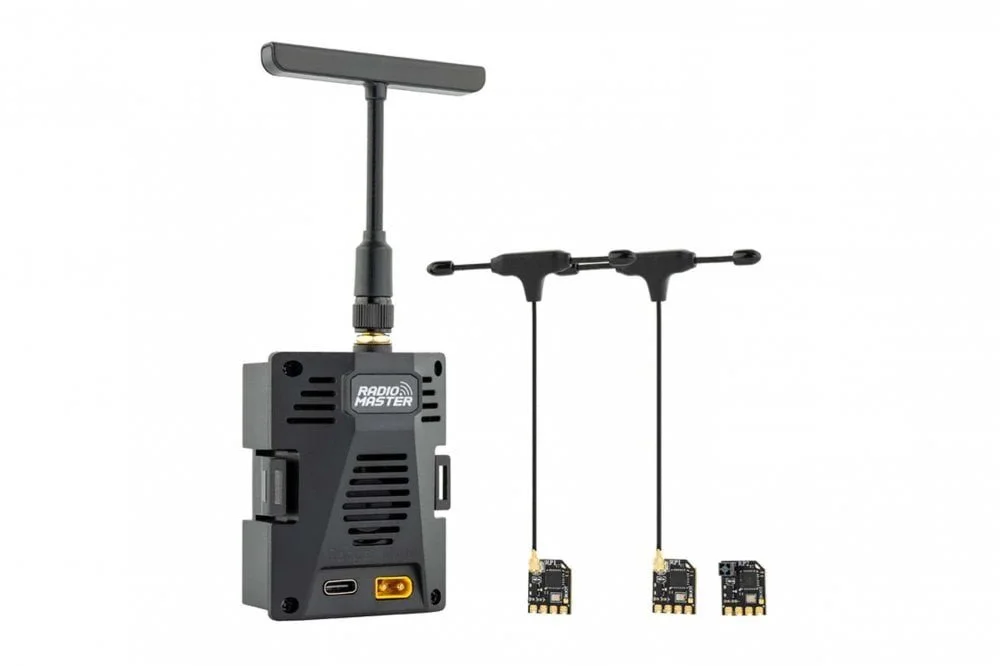

Package Contains:

• 1x Ranger Micro Module

• 1x T Antenna

• 2 x  RP1 ExpressLRS 2.4ghz Nano Receiver

• 1 x RP2 ExpressLRS 2.4ghz Nano Receiver
