RF Design - RF Extension Cable-SMA(F)-MMX - 150mm
Code: RFD-03-04-RF-Extension-Cable-SMA(F)-MMX-150mm
This is an RF extension cable with SMA (F) - MMX Male Right Angle (R/A) terminations.

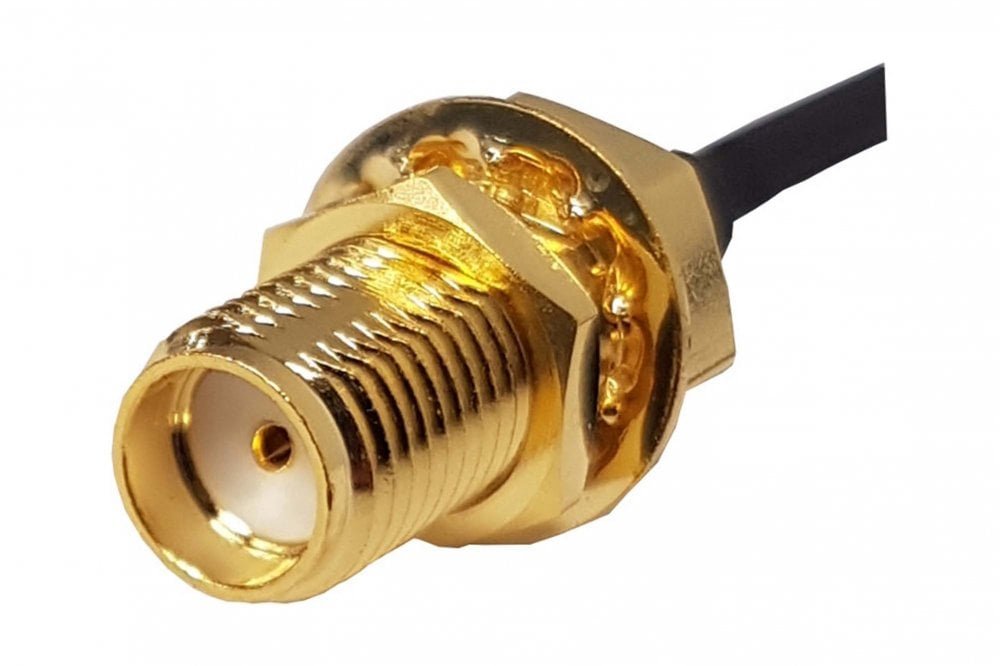

It has a bulkhead connector on the SMA(F) end to allow mounting through panels to get the best antenna location. The bulkhead will allow connection to all of our antennas in the web store. The bulkhead fitting will allow approximately a 6mm thick wall to be penetrated, with allowance for the lock washer, nut and terminating cable/antenna to be connected on the other side.
It can be connected end to end to make custom lengths (losses will be added together on subsequent cable lengths.
Specifications:
Total length: 171 mm
Insertion loss @ 915 MHz : TBA dB - typical
Insertion loss @ 2450 MHz : TBA dB - typical
Insertion loss @ 5550 MHz : TBA dB - typical
Cable type : RG-174/U
Cable thickness : 2mm
Cable length: 150 mm
Weight : 7g ( TBA oz )
Package contains:
1x RF Extension Cable-SMA(F)-MMX (M)R/A-RG-174/U - 150mm
