RF Design RFDesign - RFD 868x-EU Radio Modem (UK and Europe) - Bundle
Code: RFD-Bundle-868x-EU
Choose a FC Cable separately, we recommend powering the RFD on your drone separately and not from the Telemetry port. The FRD radio modems require 5-6v and up to 800mA. Also available are the Aero Link adapter boards and bases.
Includes
2 x RFD868x-EU Radio Modems
1 x Antenna, 868-900MHz Quarter wave monopole 2.1dBi
1 x Antenna, 868-900MHz Right Angle Quarter wave monopole 2.1dBi
4 x Antennas, 868-900MHz Half wave dipole 3dBi

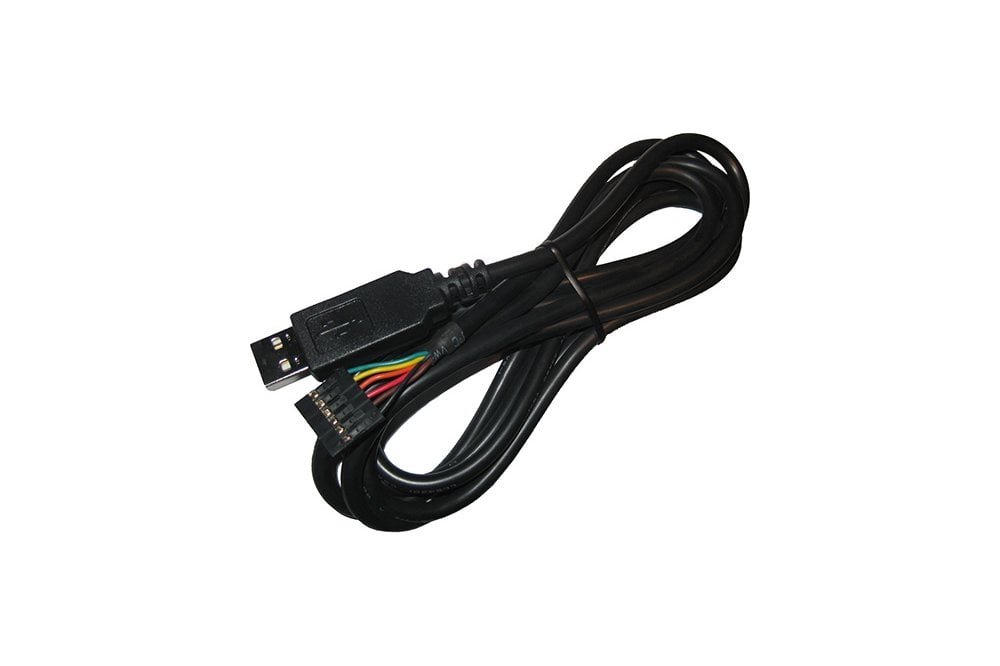

1 x FTDI USB cable
Please order connection cable separately
RFD868x-EU New Features:
New Processor, ARM 32 bit core.
Air data rate: 500kbit/s.
AES Hardware accelerated encryption. *Fully working*
RC PPM Passthrough with telemetry at the same time.
Fully ESD protected + filtered - Every IO port is protected and filtered.
Original SiK point to point firmware implemented.
Note: Currently due to the bandwidth limitations of the 868 modems Asynchronous Mesh and Multipoint Firmware are not officially supported for the 868X modems and correct operation of this code cannot be guaranteed
Features:
Long range >40km depending on antennas and GCS setup *80km demonstrated by Edge Research labs on a balloon !, 57km in India, on Dipoles.
2 x RP-SMA RF connectors, diversity switched.
Transmit low pass filter.
> 20dB Low noise amplifier, high IP3.
RX SAW filter.
All I/O ESD protected and filtered.
Re implemented SiK and Multipoint SiK firmware, field upgradeable, easy to configure.
Small, light weight.
Note: Not compatible with older modems
Interfaces:
RF : 2 x RP-SMA connectors
Serial: Logic level TTL (+3.3v)
Power: +5v, ~800mA max peak (at maximum transmit power)
GPIO: 6 General purpose IO (Digital, ADC, PWM capable).
Specifications:
Frequency Range: 868-869 MHz
Air Data transfer rates: 12, 56, 64, 100, 125, 200, 224, 500 and 750 kbit/sec (User settable, 64kbit default)*
UART data transfer rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1M baud (User settable, 57600 default)**note these values are correct as of version 3.07 SiK firmware
Receive Sensitivity: >121 dBm at low data rates, high data rates (TBA)
Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
Weight: 14.5g
Mounting: 3 x M2.5 screws, 3 x header pin solder points
Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
Temp. Range: -40 to +85 deg C, tested operational from -73 to +123 deg C.
Software / GCS Support:
The software solution is an open source development called "SiK". It has been re implemented to suit the new processor architecture available on the 32bit ARM processor core. A boot loader and interface is available for further development and field upgrade of the modem firmware via the serial port. Most parameters are configurable via AT commands, Eg. baud rate (air/uart), frequency band, power levels. Integrated support for configuring the RFD900 radios is supported by APM Planner. The default settings are at 57600 baud, N, 8, 1, and 64k air data rate. The RFD868/900x manual is here: RFD900x Manual The RFD868/900x SiK software manual is here : RFD900x Peer-to-peer Manual Software features include:
Frequency hopping spread spectrum (FHSS)
Transparent serial link
Point to Point, or Multipoint networking
Configuration by simple AT commands for local radio, RT commands for remote radio
User configurable serial data rates and air datarates
Error correction routines, Mavlink protocol framing (user selectable)
Mavlink radio status reporting (Local RSSI, Remote RSSI, Local Noise, Remote Noise)
Automatic antenna diversity switching on a packet basis in realtime
Automatic duty cycle throttling based on radio temperature to avoid overheating
Compliance :
We declare that the equipment is in conformity with the relevant Union harmonization legislation:
Directive 2014/53/EU on radio equipment
The RFD868x-EU is compliant with the following standards:
EN 301 489-3 V2.1.1
EN 300 220-2 V3.1.1
EN 62311:2008
Relevant docs for UK users IR 2030 SI for The Radio Equipment Regulations 2017
