Septentrio - Mosaic -Go GNSS Evaluation Kit
Code: SE-01-01-Mosaic-Go-GNSS-Evaluation-Kit-JS-AP55

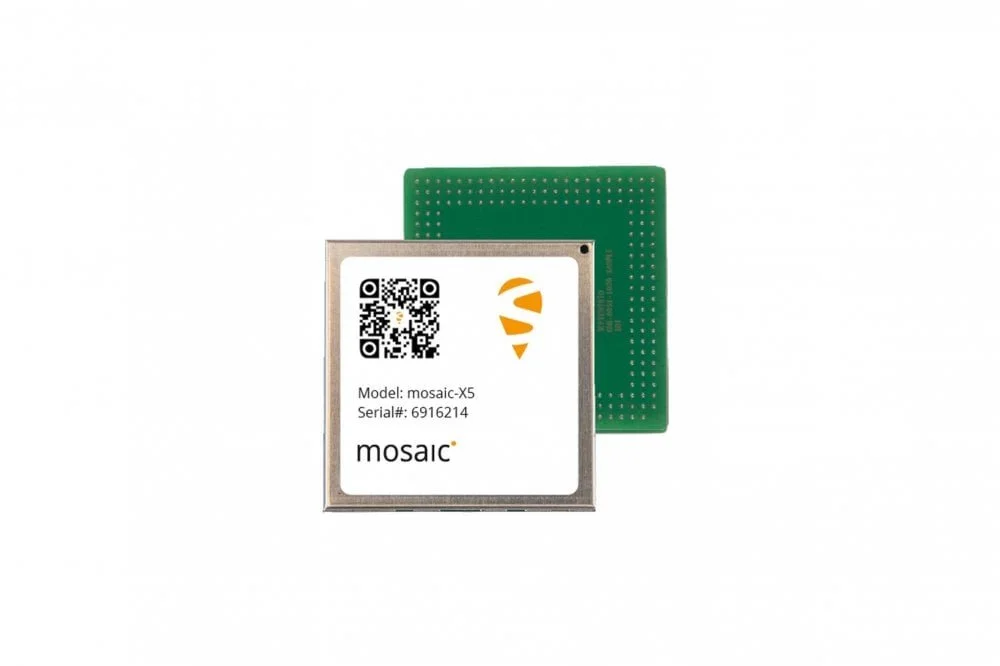

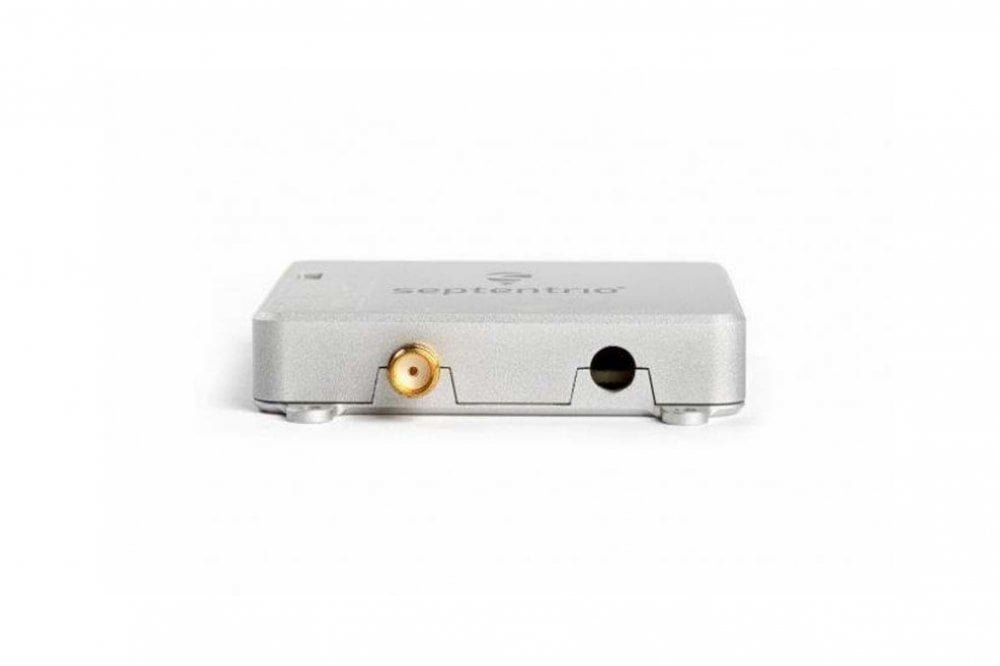

The mosaic-go is Septentrio's most compact high-precision GPS/GNSS evaluation kit, delivering best-in-class centimeter-level positioning performance especially in challenging environments. It's a multi-band, multi-constellation GPS/GNSS receiver mosaic-X5 integrated inside a small metallic housing. It is designed for easy evaluation of mosaic-X5 for applications like UAV, robotics, autonomous systems, construction and agriculture. This unique high-performance module supports all current GNSS satellite signals and is future-proof for upcoming signals and services. Unique built-in AIM+ technology for interference monitoring and mitigation and anti-spoofing, ensures the best availability, reliability and precision.
The evaluation kit offers the possibility to discover and test the mosaic-go. Create a prototype by integrating the mosaic-go evaluation kit into your system using any of the of following connections: COM ports, USB 2.0, SD memory card.
Features:
Complete multi-frequency, multi-constellation GNSS receiver: GPS, GLONASS, Galileo, BeiDou, QZSS
Ultra small evaluation kit: 71 x 59 x 12 mm
Weight: 58 g
Ready to use interface with USB, serial ports, PPS and events
Best-in-class anti-interference, anti-jamming, anti-spoofing technology: Advanced Interference Monitoring and Mitigation (AIM+)
Industry leading ultra-low power consumption
High update rate: up to 100 Hz for measurements and 50 Hz for RTK
Comes with set of cables and intuitive web user interface for easy operation and monitoring from any mobile device or computer
Package contains:
1 mosaic-X5 module soldered on an interface board inside a metallic housing.
1 USB cable
6-pin COM1 open-ended cable
4-pin COM2 open-ended cable
Help user guide card
