SKU12042 - Holybro M10 Secondary GPS (JST GHR1.25mm 6pin cable): This connector can be used on Pixhawk Standard Flight Controller 6pin“UART & I2C”or "GPS2" input port as secondary GPS. This GPS is al

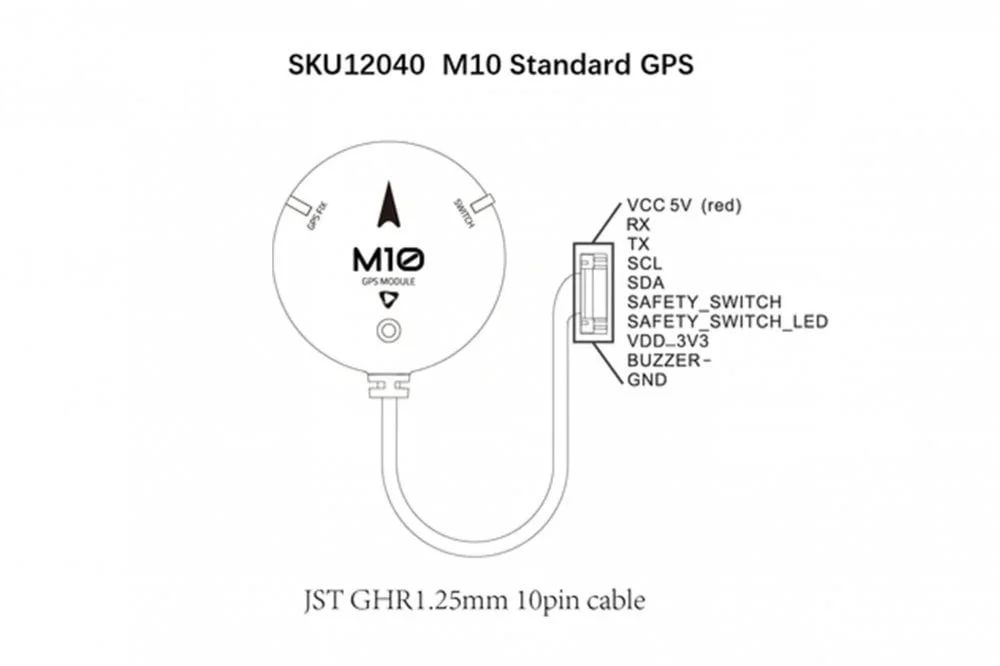

SKU12040 - Holybro M10 GPS (JST GHR1.25mm 10pin cable):
This option is the most common, it is used on the This connector can be used on Pixhawk Standard Flight Controller 10pin “GPS Module”or "GPS1" input port.
The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Firmware Support for M10 GPS:
PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
Features:
Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
High-gain 25*25*4mm antenna
IST8310 Compass
Internal Buzzer, Safety switch
Ultra Bright UI RGB LED
Specifications
Please always check the manufacturer's website for the latest specifications.
GNSS Receiver
Ublox M10
Number of Concurrent GNSS
Up to 4 GNSS
BeiDou
Galileo
GLONASS
GPS
QZSS
Frequency Band
GPS L1
Galileo E1
GLONASS L1
BeiDou B1
SBAS L1
QZSS L1
Compass
IST8310
Output Protocol
UBX (U-blox)
NMEA
Accuracy
2.0m CEP
Nav. Update Rate
Up to 25 Hz (single GNSS),
Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System
EGNOS, GAGAN, MSAS and WAAS
QZSS: L1S
Default Baud Rate
115200
Input Voltage
4.7-5.2V
Port Type
JST-GH-10P
Antenna
25 x 25 x 4 mm ceramic patch antenna
Power consumption
Less than 200mA @ 5V
Operating Temperature
-40~80C
Dimension
φ50 x14.4 mm
Weight
32g
Cable Length
26cm (42cm cable purchase separately)
Other
Tri-color LED
Onboard Buzzer
Safety Switch
LNA MAX2659ELT+ RF Amplifier
Rechargeable Farah capacitance
Low noise 3.3V regulator
Package contains:
1x M10 GPS Module
1x Fixed Carbon Fiber GPS mount
