Code: Tarot-B-03-04-TL4X004-1

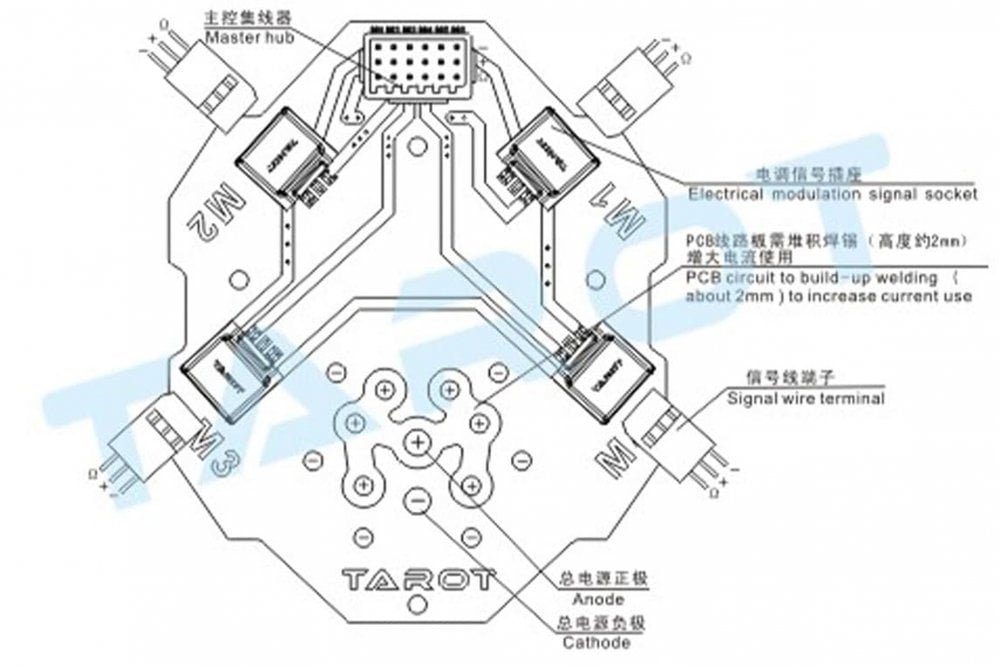

• Applicable to Tarot X4 and quad-copter modification.

• Equipped with four connectors for ESC signal and heavy current power hub.

• User need to solder tin on PCB for heavy current.

Wire requirement:

• • ESC: 12-14AWG wire, diameter 3.5MM

  • Power input: 10AWG wire, diameter 5MM

Specifications

• PCB main board x1 (101 x 84 x 1.5 MM)

• ESC hub x1 (20 x 11.5 x 12 MM)

• Signal connector x4 (15 x 13 x 7 MM)

• Red 10AWG silicone wire x1(180 MM)

• Black 10AWG silicone wire x1(180 MM)

• Sponge sticker x1 (40 x 3 MM)

• Weight: 53G
