Code: Tarot-B-02-08-TL68B35-1
Tarot quick release CW prop adapter Black TL68B35

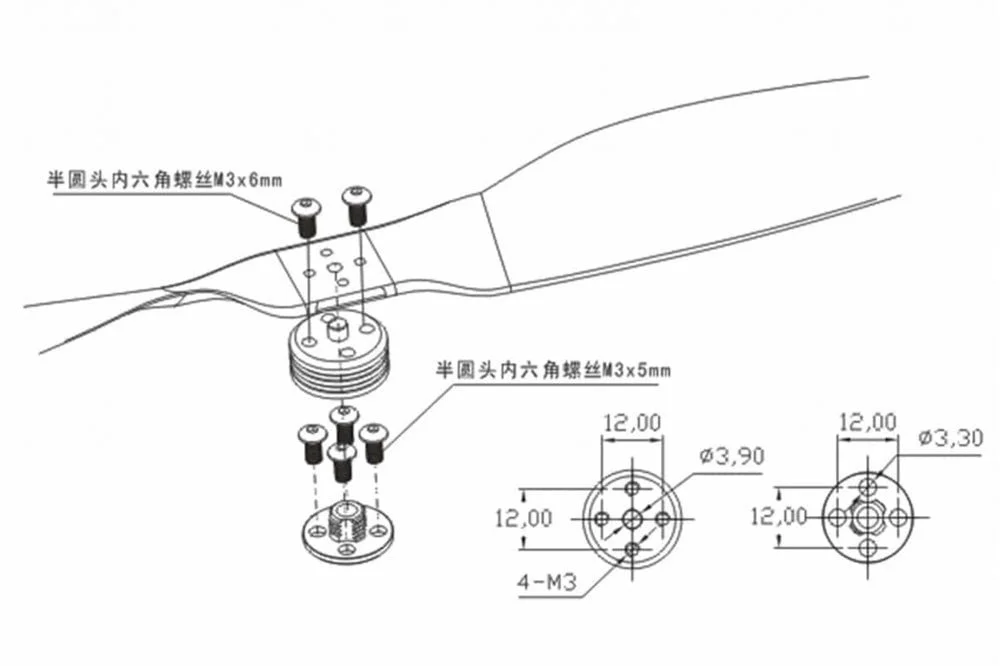

Product Description 6061T6 Aluminum Alloy applied, full CNC processed. Applicable motors: motor shaft less than 4MM, M3 Installation pitch 12MM. To loose: turn the prop adapter counter-clockwise. To tight: turn the prop adapter clockwise.
Specification:
Prop Adapter Top coverx1 (19.5x11.5MM) 2.5G
Prop Adapter Bottom coverx1 (18x7MM) 1.2G
M3x6MM screw x2 0.4G
M3x5MM screw x4 0.4G
Code: Tarot-B-02-08-TL68B35-1
Tarot quick release CW prop adapter Black TL68B35
Product Description 6061T6 Aluminum Alloy applied, full CNC processed. Applicable motors: motor shaft less than 4MM, M3 Installation pitch 12MM. To loose: turn the prop adapter counter-clockwise. To tight: turn the prop adapter clockwise.
Specification:
Prop Adapter Top coverx1 (19.5x11.5MM) 2.5G
Prop Adapter Bottom coverx1 (18x7MM) 1.2G
M3x6MM screw x2 0.4G
M3x5MM screw x4 0.4G
