Code: TBS-04-02-Unify-Pro-5GB-HV-(RP-SMA)

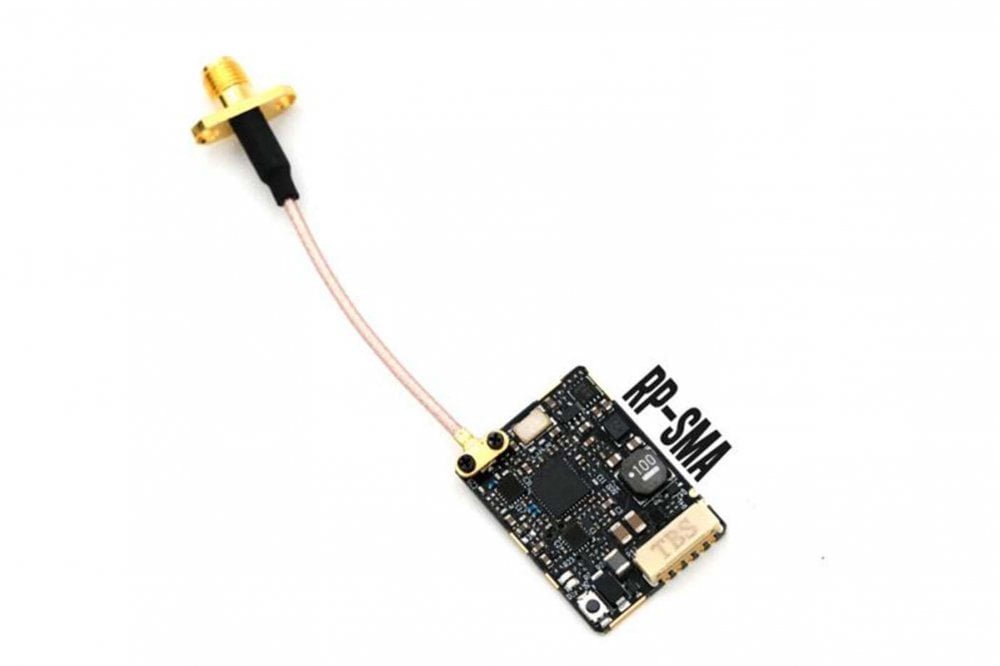

Team Black Sheep Unify Pro 5GB HV (RP-SMA) The smallest and most powerful (800mW!) video transmitter the world has ever seen! It's race ready with PitMode, a super-clean and interference free power levels, and connectivity to flight controllers and other means of quickly changing channels. It can be connected directly to up to 6S of battery-juice and provides 5V output for your camera. It will filter the power and make sure you get clean video, even without being connected to a TBS CORE or TBS PowerCube.
Features:
Smallest, lightest video transmitter on the market
2-6S input power supported
Up to 800mW of output power
Ultra-clean transmission (up to 16 pilots at once!)
PitMode - power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified
Specifications:
Operating Voltage: 2S - 6S
Supply Current: up to 600mA
Operating Temperature: watch for normal airflow
Audio Carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 7g (with SMA, without antenna)
Input Connector: JST GH 7pin (after July 2018)
Antenna Connector: SMA Female Socket with screw mounting holes
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

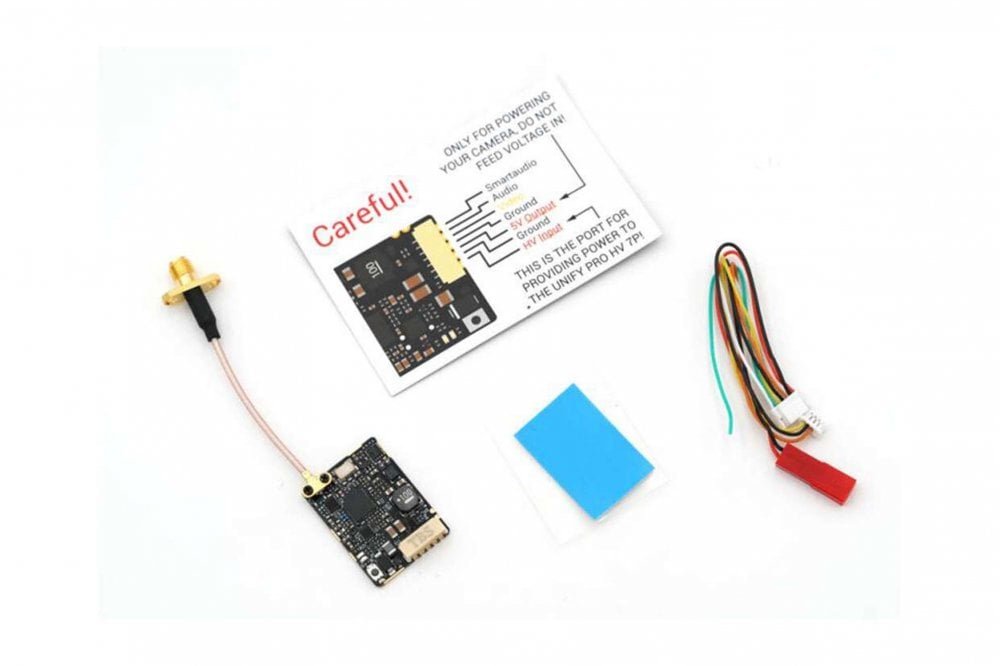

Package contains:
TBS UNIFY PRO 5G8 HV Video transmitter
Video Transmitter / Camera / Power cable
TBS UNIFY Pro Manual
TBS UNIFY Pro Manual (German)
