Toolkit RC ToolkitRC - WM150 Watt Meter
Code: DA-TRC-B-01-02
ToolKitRC 150A Watt Meter Also servo test function
Features

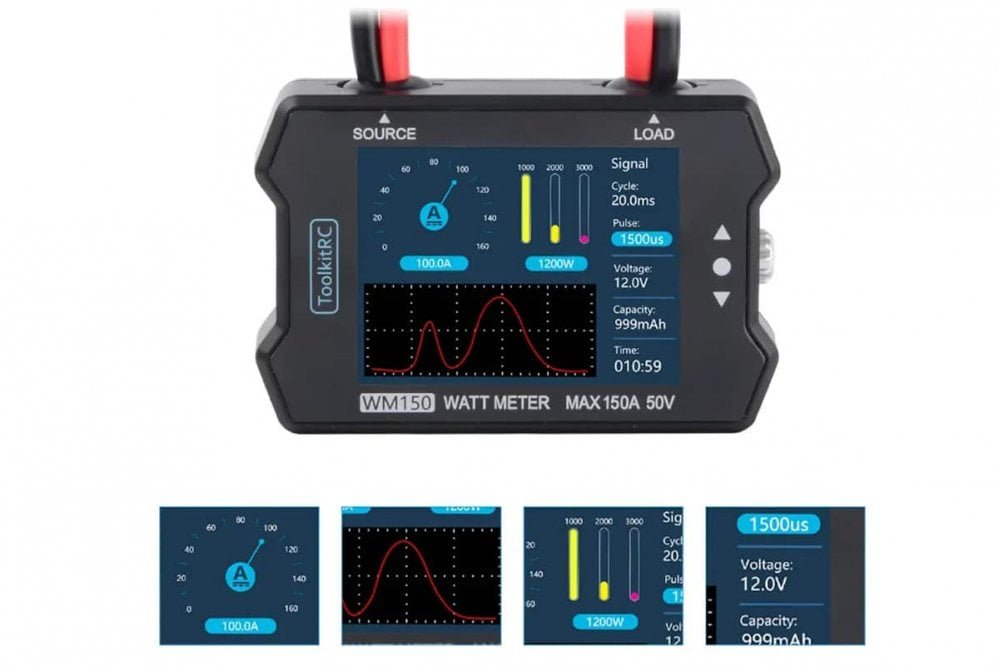

ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like servo, ESC, battery, etc. 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA. Support PWM signal, 1us precision, the pulse width is changeable by adjusting the button. Automatically to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-display is changed to A. The watt meter is also supporting to display working hours. USB firmware update, easy to operate.
Specifications
Input Voltage: 1-50V@MAX150A (1100W MAX) USB: 5.0V@1A Firmware upgrade@USB3.0 Output PWM: 1000us-2000us @50Hz Display LCD: TFT 2.4 inch 320*240 resolution Product Size: 80mm*54mm*23mm Weight: 120g Packing Size: 87mm*87mm*28mm Weight 140g
