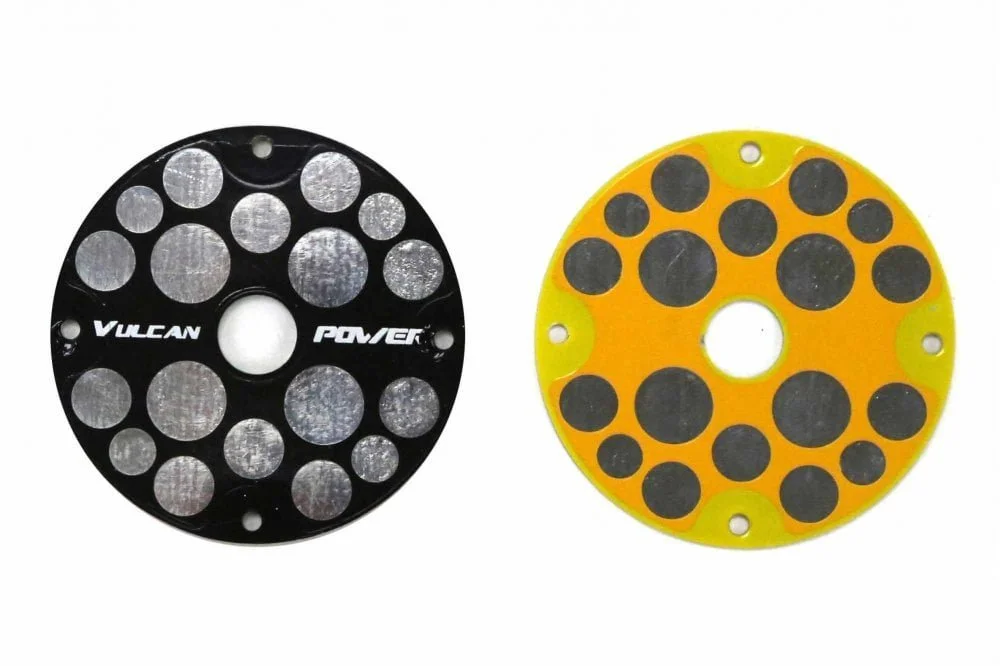

Vulcan UAV - 400A V2 Power Distribution Board, Double-Sided
Code: BLD-A-06-04-400A-V2-PDB
Vulcan UAV- 400A V2 Power Distribution Board, double-sided, including hardware
This is a double-sided board, one side for positive connections, the other for negative, making it a very safe board which is almost impossible to short
It features no less than 18 pairs of solder pad connection points of different sizes to suit various uses from very heavy duty battery connections to small auxilliary power feeds.
Package contains:
1 x PDB, 400A
Specification
Diameter: 64mm
Weight: 24g
Mounting Holes: 3mm
Solder pad diameter: 7 - 12mm
Current Capacity: up to 400A
10mm Nylon Mounting Pillars and 6mm bolts included
Please Note: Due to the high copper thickness on this board you will need a powerful soldering iron to make good solder joints. Recommended 120W
