Code: AM-A-07-01-XT150-M-BLACK

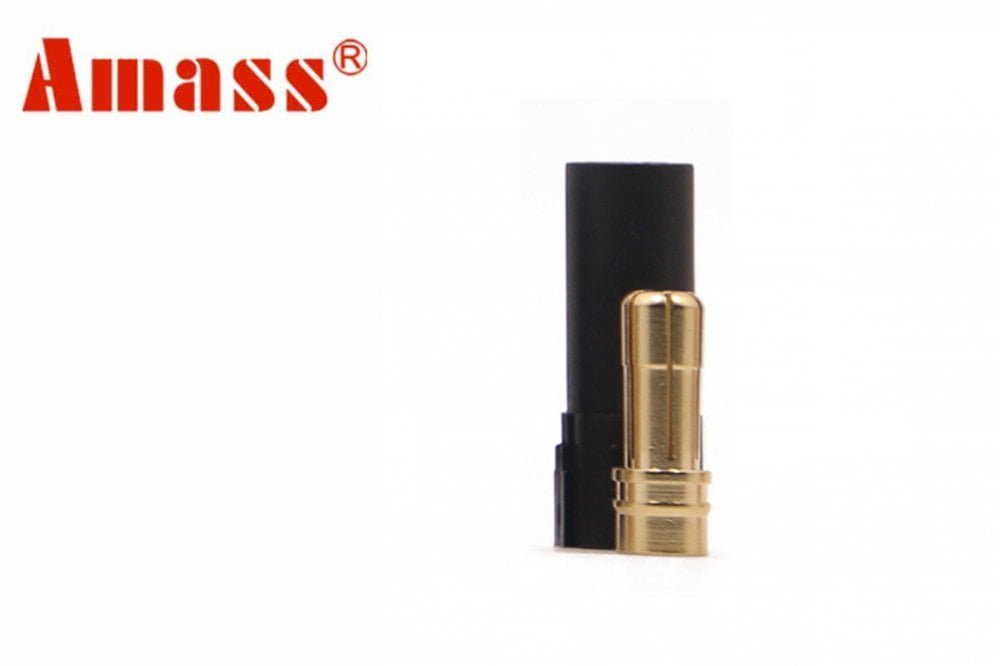

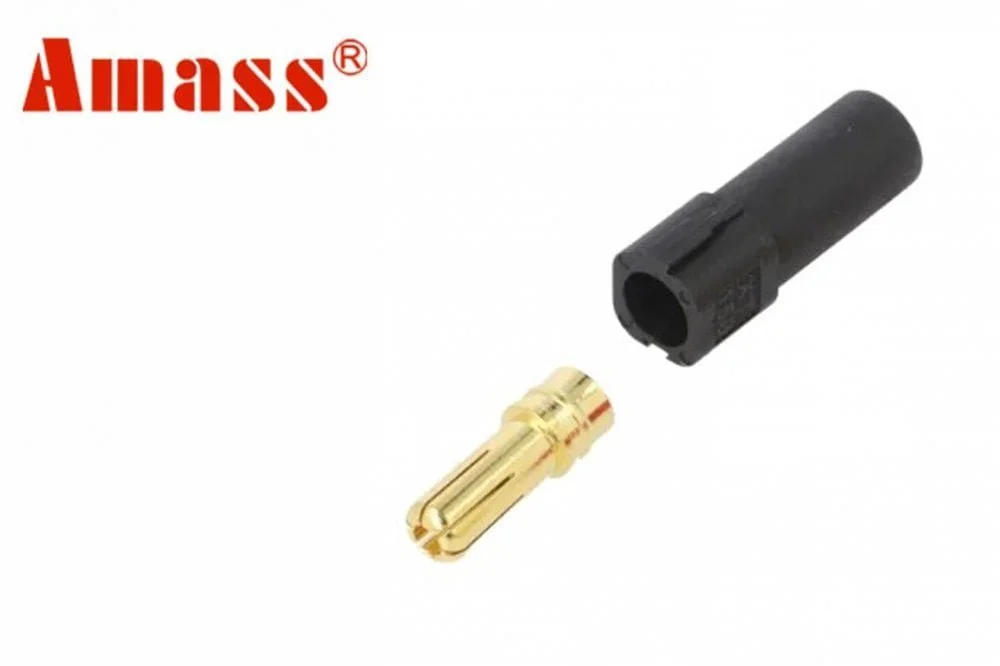

XT150 manufactured by AMASS 1 x XT150 Male Black
Specification
Manufacturer: AMASS
Connector: plug
Type of connector: DC supply
Connector series: XT150
Kind of connector: male
Number of pins: 2
Mechanical mounting: for cable
Electrical mounting: soldering
Contact plating: gold flash
Current rating: 60A
Flammability rating: UL94V-0
Operating temperature: -20...120°C
Rated voltage: 500V
Spatial orientation: straight
Contact material: brass
Mechanical durability: 1000 cycles
Body material: polyamide
Wire size: 8AWG
Includes:
