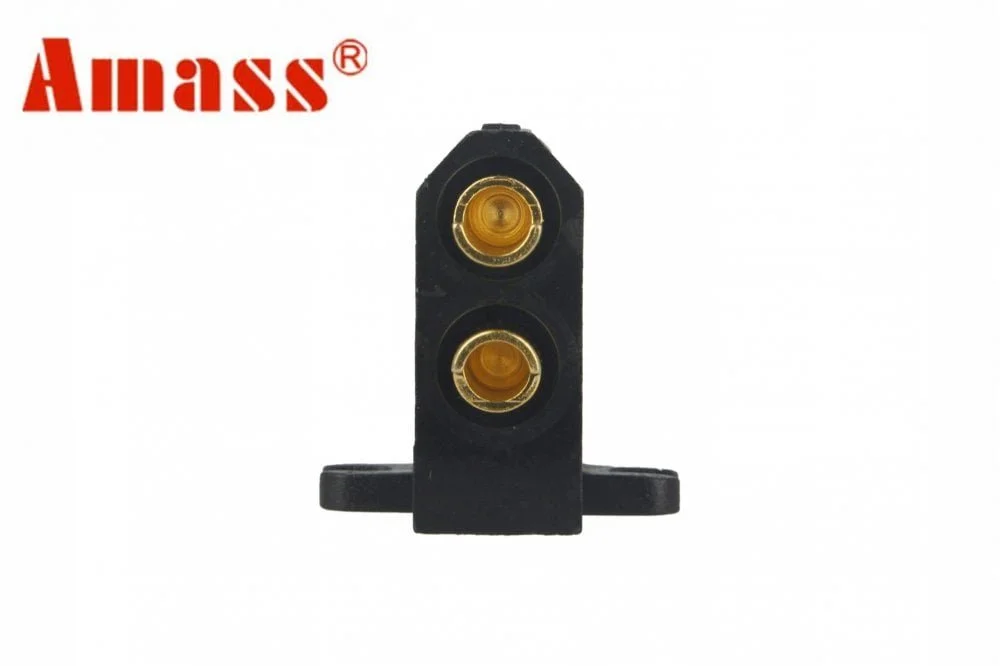

Code: AM-A-04-03-XT60C-M
Manufacturer: AMASS
Product Category: DC Power Connectors
Current Rating: 60 A
Connector Series: Xt60
Electrical Mounting: Soldered
Mechanical Mounting: Flange (2 Holes), On Panel
Spatial Orientation: Straight
Kind Of Connector: Male
Connector: Socket
Colour: Black
Contact Plating: Gold Flash
Body Material: Polyamide
Type Of Connector: Dc Supply
Flammability Rating: Ul94v - 0
Contact Material: Brass
Mechanical Durability: 1000Cycles
Wire Size: 12 AWG
Number Of Pins: 2
Rated Voltage: 500 V
Operating Temperature: - 20 To 120 C
Includes:
