078 - HS Current Sensor HV 200A 4-14S

Code: Mauch-078

8 AWG wire version

200A – Current measurement sensor board 4-14s max 60v

Includes DF13 cable, to use with Pixhawk 2 add the Clik Mate 2.0 cable available here

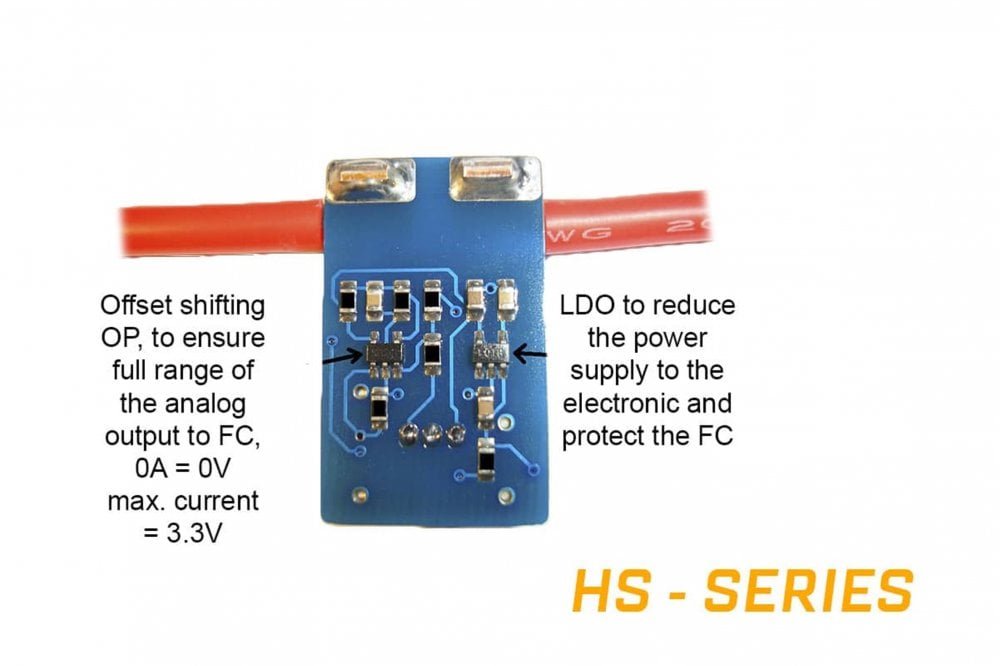

200A – Current measurement sensor board, based on Allegro Hall Sensor ACS-200U.

The voltage reading of the LiPo is optimised for up to 14S LiPo packs.

This Sensor board needs a power supply. So please select the matching BEC according your preference from the BEC section.

The BEC will also power the flight controller as well as the attached equipment like GPS, telemetry… etc.

Connected to the sensor are 2x10cm AWG8 wire (red) as a standard.

The board comes with

• 10cm connection cable (DF-13-6pDF-13-6p) to the FC for Pixhawk 1 or APM.

For Pixhawk 2 add the Clik Mate cable
