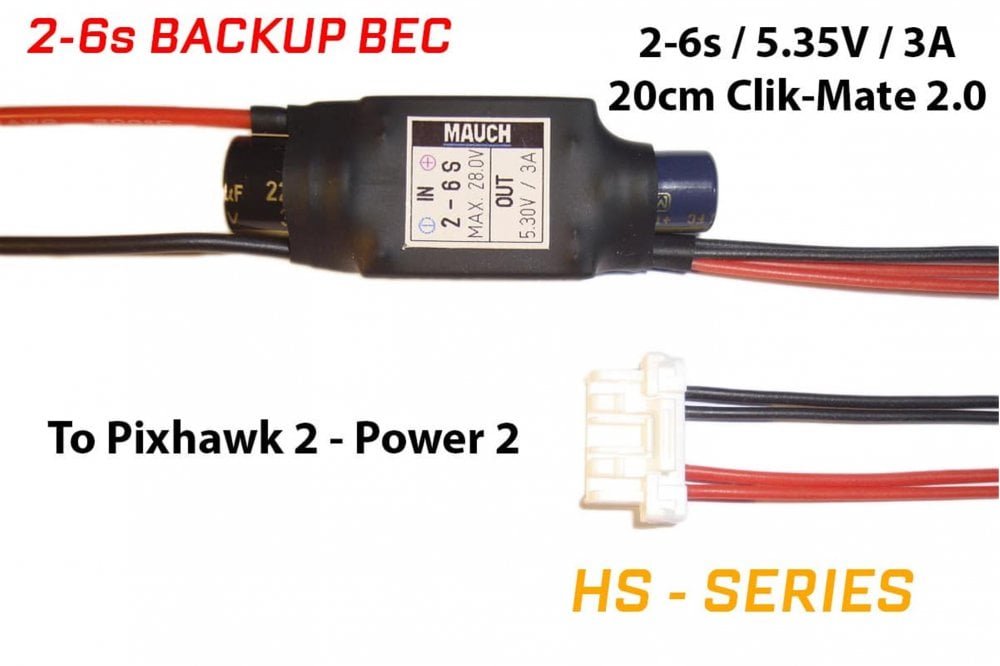

083 - 2-6s backup BEC for Pixhawk 2

Code: Mauch-083

Input 2-6s LiPo BEC output 5.35v 3A Clik Mate 2.0mm connector for Pixhawk 2 backup power

Input 2-6S LiPo / max. 28V.Output 5.35V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current. Input wrong polarity protection, as well as Panasonic FM input and output capacitors to prevent burn out of the UBEC from voltage spikes. 20cm output cable with Molex / 6p / Clik-Mate 2.0mm. (To connect to Pixhawk 2 / Battery 2) 2x 20cm spare wires with Clik-Mate 2.0mm crimp, for Battery 2 current and voltage sence. 47mm x 18mm x 11mm / 9g with cables and shrinking tube.
