Mauch Electronics

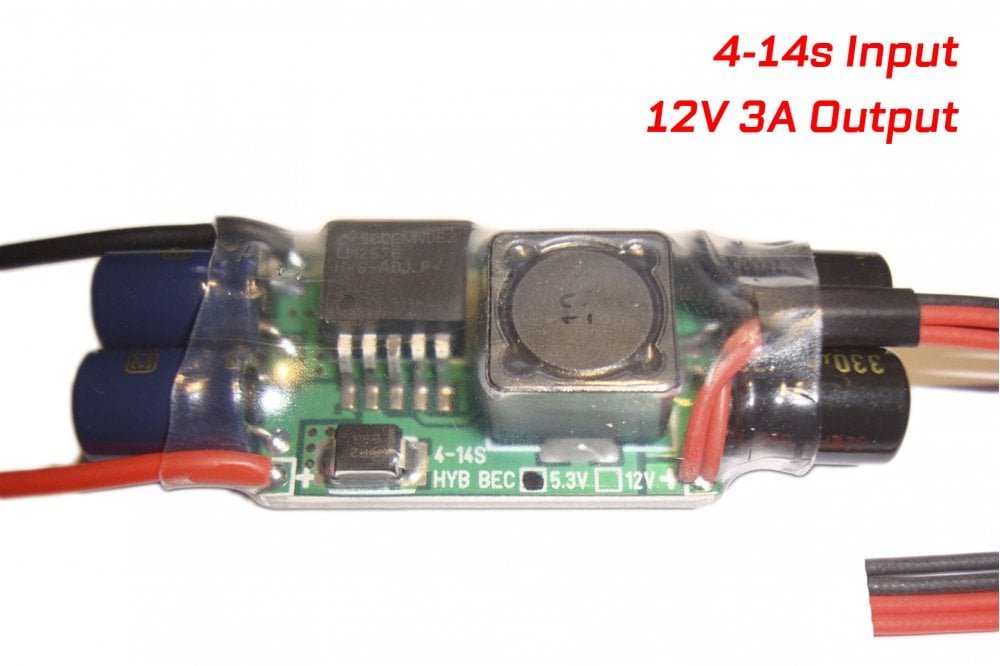

090 – HYB-BEC 4-14s - 12v Output
£43.79
In stock — ships from our UK warehouse
- SKU
- SQ7063141
- Category
- Mauch Electronics
Description
Code: Mauch-090
This BEC is an switching power supply and in series an linear LDO (LM1764A) to remove the ripple. Due to the component selection, this BEC get’s only warm during operation (LDO only 0.35V dropout voltage).
Input and output is protected by Panasonic FC / FM capacitors.
Input 4-14S LiPo / max. 60V. Output 12V / 3A -> +/- 0.05V.
54mm x 21mm x 14mm / 16g with cables and shrinking tube.
