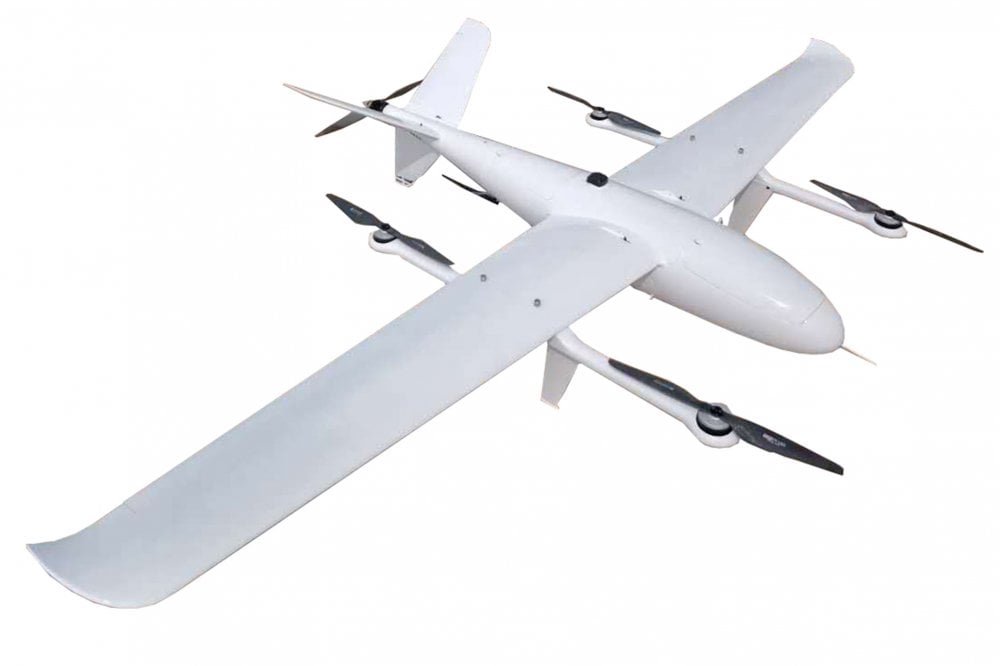

KYBOSH 250 2.5m V-Tail VTOL

Code: KYBOSH-250

KYBOSH 250 2.5m V-Tail VTOL

VTOL 2.5m V-Tail Frame- KIT

• Package contains: x1 KIT. (Does not include any electronics).

• The product comes within an aluminium case, as per the image.

• This is a long endurance RC model; ideal for mapping monitoring.

VTOL 2.5m V-Tail Frame- PNP (Grey Colour)

• Package contains: x1 PNP

• Fitted Motors & ESCs (T-Motor))

• Fitted Servos & Control Horns

• Propeller

• Note- Flight electronics are not included. You will be required to fit FC, GPS, Airspeed, Batteries, Control Line, etc... (The PNP makes for quicker assembly)

Recommended Set-up (Sold separately on our Website)

• 4 x T-motor V505 KV260 (Included in PNP)

• 4 x T-motor Flame 60A HV ESC (Included in PNP)

• 2 x P16*5.4 Propeller CW&CCW (Included in PNP)

• 1 x T-motor AT115A ESC (Included in PNP)

• 1 x T-motor AT4130 KV230 (Included in PNP)

• 1 x 17*12 Propeller CW (Included in PNP)

• 4 x GDW296X servo (Included in PNP)- Note, we do not stock this individually.

• 1 x Matek ASPD-DLVR Air Speed Sensor

• 1 x Mauch Power Cube 4 & PL100A

• 1 x Cube Orange

• 1 x Herelink

• 2 x 6S 25000mAh HV Lipo battery

Please Note- This product does not come with a user manual as it is targeted to experienced users.

Manufacturer Description:

• Long endurance with vertical take-off and landing plane, wingspan 2.5 meters, it is electric version.

• This model combines the characteristics of long-endurance, high-speed and long-distance of plane RC models and the vertical take-off and landing of rotor-wing RC models.

• It does not require runway but only small space for take-off and landing, and can be operated smoothly on ship deck, narrow airspace, mountain, complex terrain and densely populated areas such as hills, jungles.

• The whole process of autonomous flight can be completed without operator intervention for cruise, flight state transition and vertical take-off and landing.

• The equipment compartment is a replaceable hatch cover, and different mounting hole positions can be designed for different load requirements of the user.

• The fuselage is designed as quick release structure, with reliable electrical connection, plug and play; unfolding and withdrawal time is less than 10 minutes.

• The engine is rear-mounted and the load is placed forward to provide a larger field of view for the photoelectric load without obstruction.

Features

• Body material: carbon fibre, glass fibre, Kevlar, pvc interlayer, etc.

• Body length: 1.26m

• Wingspan: 2.5m

• Landing gear height: 19.5cm

• Landing gear installation position: below the rotor rod

• Task compartment size: 260mm*172mm*90mm

• Battery compartment size: 260mm*150mm*85mm

• Position of applications compartment: directly below the centre of gravity of the model

• Structure weight: about 3.2kg

• Maximum take-off weight: less than 13kg

• Maximum load: 2kg (standard load: 1-1.5kg)

• Endurance time: 170min/1.5kg (standard power configuration) (plane power can be equipped with 18650 Batteries to increase endurance time)

• Standard cruising speed: 65km/h (about 18m/s)

• Maximum cruising speed: 108km/h (30m/s)

• Stall speed: 16m/s

• Minimum circling radius: 150m

• Maximum level flight limit: 4000m above sea level

• Wind resistance of plane mode: no less than 7 wind (17.1m/s)

• Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (8m/s)

• Operating environment: -20℃~45℃; can fly in light rain

• Power battery: 2x25000mah

• Take-off and landing method: vertical take-off and landing

• Vertical power blade size: 16 inches (recommended)

• Plane tail thruster blade: 17 inches (recommended)
