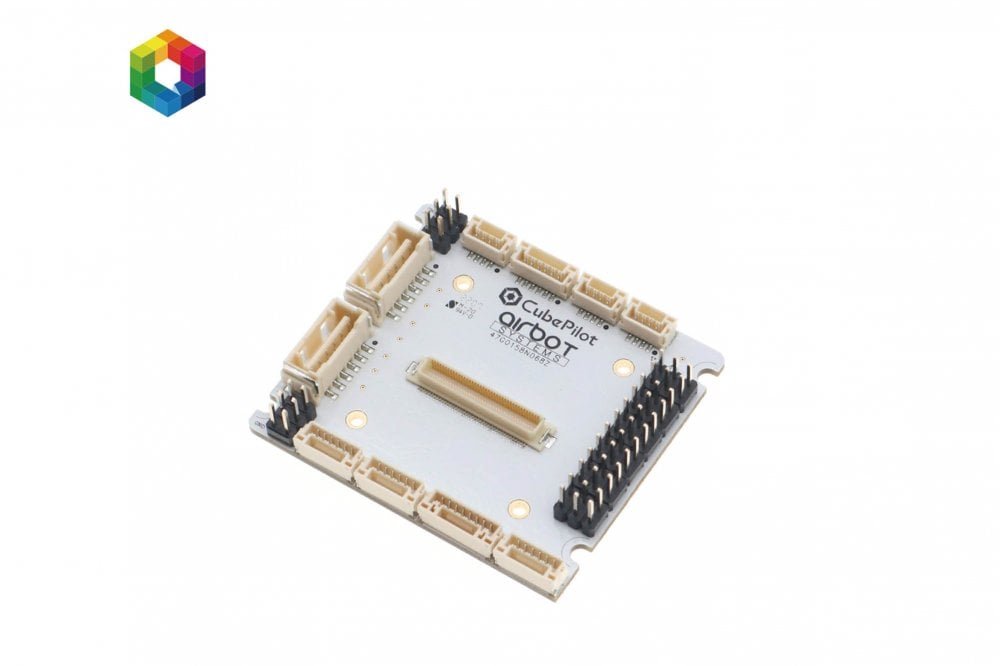

AIRBOT SYSTEMS Airbot - Mini Carrier Board for Cube Autopilot

The Airbot Mini carrier board is one of the way to install a Cube on a RC model. The Mini carrier board encapsulate all the wiring in a 50.5x57.5mm board, in order to save space and weight for applications which have size limits.

**Please note that this set does not come with PDB. PDB can be purchased separately here

This Package Contains:

• 1 x Airbot Mini Carrier Board

• 1 Nylon Set

• Features

  • Dual power inputs (redundant power with automatic switch to the second power source when first one fails)

  • Easy to install on RC model (see the mounting pattern above)

  • Power distribution & voltage protection (providing current to each connector)

  • Motor PWM signal distribution (up to 8 motors - distributed on corners)

  • Standard 2.54mm servo PPM/S.BUS/Spectrum RC input (+5v/+3.3v selectable power from carrier board)

  • AUX VCC pins are connected together. This allows powering the AUX rail externally.
